PI4ULS3V204LE - Diodes Incorporated

Description: Translation - Voltage Levels Interface ULS TSSOP-14 TUBE 96PCS

Download PI4ULS3V204LE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

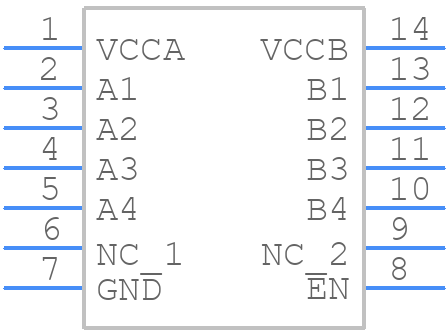

PI4ULS3V204LE - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI4ULS3V204LE - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-14L
click to zoom
3D Models
PI4ULS3V204LE - Diodes Incorporated - 3D model - Small Outline Packages - TSSOP-14L
click to zoom

PI4ULS3V204LE Details

  • Manufacturer Part Number:

    PI4ULS3V204LE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-24

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PI4ULS3V204LE Frequently Asked Questions (FAQs)

  • A good PCB layout for the PI4ULS3V204LE involves keeping the input and output tracks separate, using a solid ground plane, and minimizing track lengths and widths to reduce parasitic inductance and capacitance.
  • Ensure a stable power supply, decouple the device with a 10uF capacitor between VCC and GND, and add a 1uF capacitor between VCC and the output pin to filter out noise.
  • The maximum current rating for the PI4ULS3V204LE is 1.5A per channel, but it's recommended to derate the current based on the ambient temperature and PCB thermal design.
  • Use an oscilloscope to monitor the output voltage and current, check for proper power supply decoupling, and verify the PCB layout and component selection to identify the root cause of the issue.
  • The PI4ULS3V204LE is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Ensure proper thermal design and derating to ensure reliable operation.
