PI5USB212XUAEX-7R - Diodes Incorporated

Description: Buffer, ReDriver 1 Channel 12-STQFN (1.6x1.6)

Download PI5USB212XUAEX-7R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

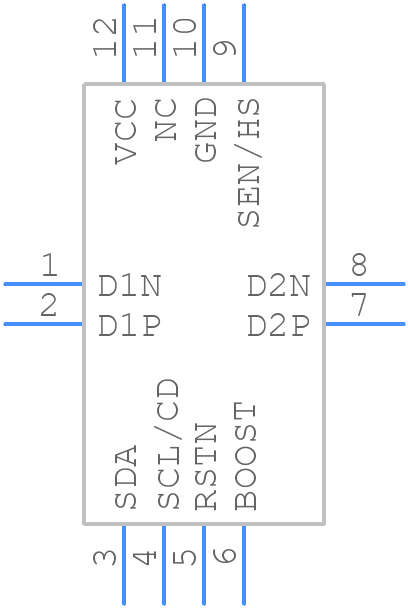

Symbol
PI5USB212XUAEX-7R - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI5USB212XUAEX-7R - Diodes Incorporated PCB footprint - Other - Other - X2-QFN1616-12(XUA)
click to zoom
3D Models
PI5USB212XUAEX-7R - Diodes Incorporated - 3D model - Other - X2-QFN1616-12(XUA)
click to zoom

PI5USB212XUAEX-7R Details

  • Manufacturer Part Number:

    PI5USB212XUAEX-7R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    Diodes Incorporated

  • Interface IC Type:

    INTERFACE CIRCUIT

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    10

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI5USB212XUAEX-7R Overview

Use the download button to access the PI5USB212XUAEX-7R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI5US, or try a keyword search, such as Other Interface ICs
