A good PCB layout for the PI5USB2546AQZHEX involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the USB connector. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure signal integrity, use a differential pair for the USB data lines, keep the signal traces short and matched in length, and use a common mode filter or a shielded cable to reduce electromagnetic interference (EMI).
The PI5USB2546AQZHEX supports cable lengths up to 3 meters, but the actual maximum length may vary depending on the specific application, cable quality, and environmental conditions.
The PI5USB2546AQZHEX has an internal power management system that can be controlled through the EN pin. Connect the EN pin to a voltage source (e.g., VCC) to enable the device, and connect it to ground to disable it.
The PI5USB2546AQZHEX has a maximum junction temperature of 150°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI5USB2546AQZHEX Overview

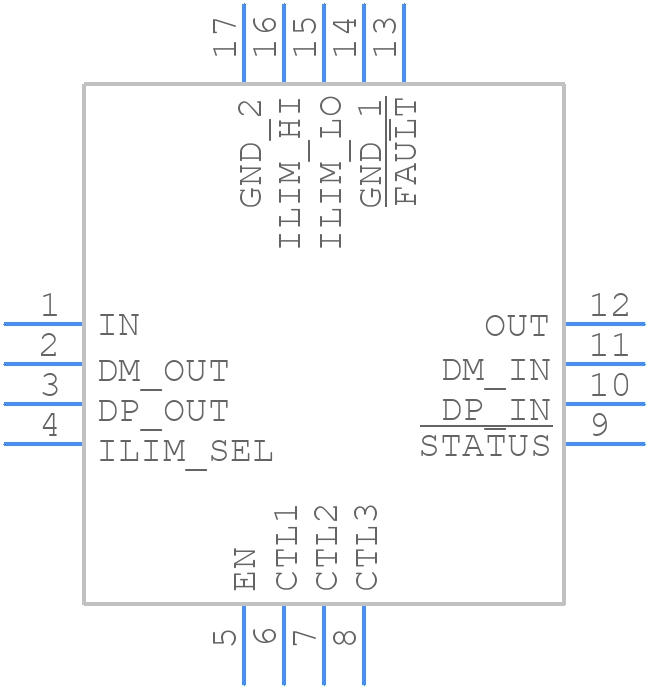

Use the download button to access the PI5USB2546AQZHEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI5US,
or try a keyword search, such as Power Management Circuits
