A good PCB layout for the PI5USB30216CXUAEX involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure signal integrity with the PI5USB30216CXUAEX, use controlled impedance traces, minimize trace lengths, and avoid vias and stubs. Also, use a common mode filter or a differential filter to reduce electromagnetic interference (EMI).
The PI5USB30216CXUAEX supports cable lengths up to 3 meters, but the actual length may vary depending on the specific application and the quality of the cable.
Yes, the PI5USB30216CXUAEX is compatible with USB-C connectors. However, ensure that the connector is properly configured to support the desired USB mode (e.g., USB 2.0, USB 3.2 Gen 1, or USB 3.2 Gen 2).
To configure the PI5USB30216CXUAEX for USB 3.2 Gen 2 operation, set the MODE pin to '1' and ensure that the device is powered from a 3.3V supply. Also, ensure that the PCB layout and the cable assembly meet the USB 3.2 Gen 2 specifications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI5USB30216CXUAEX Overview

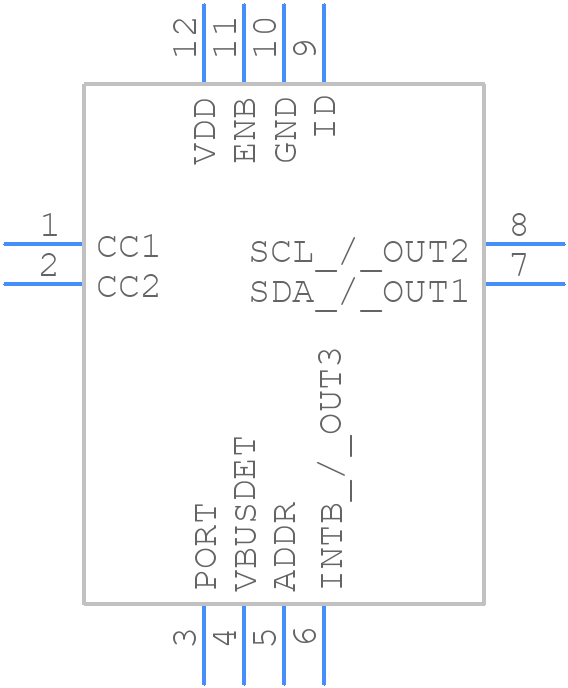

Use the download button to access the PI5USB30216CXUAEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI5US,
or try a keyword search, such as Power Management Circuits
