A good PCB layout for the PI6C10806BLEX involves keeping the input and output tracks separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize EMI.
To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which includes applying power to the device, waiting for the internal voltage regulator to stabilize, and then configuring the device using the I2C interface. The datasheet provides a detailed power-up sequence diagram.
The PI6C10806BLEX has a maximum junction temperature of 125°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package. Additionally, follow the recommended PCB layout guidelines to minimize thermal resistance.
To troubleshoot issues with the PI6C10806BLEX, start by verifying the power supply and clock signals, then check the I2C bus signals using a logic analyzer or oscilloscope. Consult the datasheet for troubleshooting guidelines and use the device's built-in diagnostic features, such as the error detection and correction mechanisms.
Yes, the PI6C10806BLEX is a sensitive device and requires proper ESD protection during handling and assembly. Follow standard ESD protection procedures, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging materials.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6C10806BLEX Overview

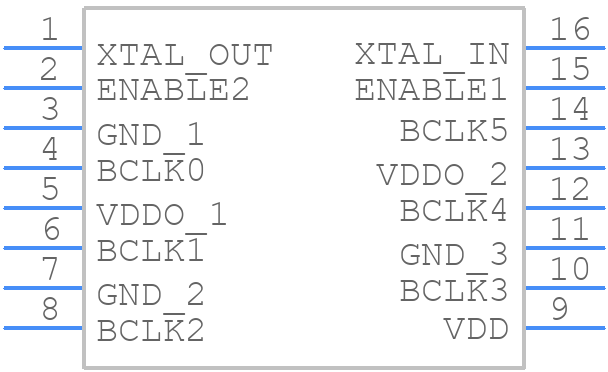

Use the download button to access the PI6C10806BLEX schematic symbol, PCB footprint, and 3D model.
