A good layout and routing practice for the PI6C20400ALEX involves keeping the clock signal traces short and away from noisy signals, using a solid ground plane, and minimizing vias and layer changes. It's also recommended to use a 4-layer PCB with a dedicated power plane and a solid ground plane.
To ensure proper powering and decoupling of the PI6C20400ALEX, use a high-quality decoupling capacitor (e.g., 0.1uF) placed as close as possible to the VCC pin, and a 10uF bulk capacitor on the power rail. Also, ensure a low-impedance power supply and a solid ground plane.
The PI6C20400ALEX can operate up to 200MHz, but the maximum frequency of operation depends on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and application notes for specific guidance.
To troubleshoot issues with the PI6C20400ALEX, use a high-speed oscilloscope to measure the clock signal and output signals, and check for signal integrity, jitter, and noise. Also, verify the power supply and decoupling, and ensure proper PCB layout and routing.
The PI6C20400ALEX is rated for operation up to 85°C, but it's recommended to derate the device for high-temperature operation. Consult the datasheet and application notes for specific guidance on thermal management and derating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6C20400ALEX Overview

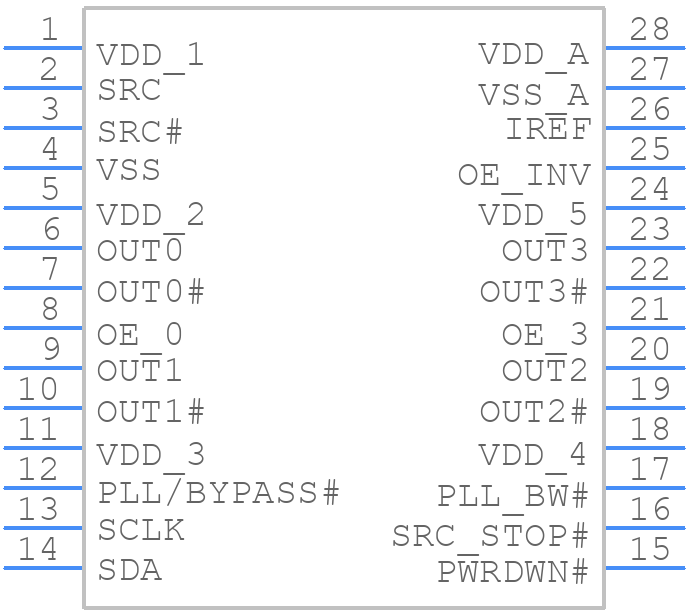

Use the download button to access the PI6C20400ALEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6C2,
or try a keyword search, such as Clock Drivers
