A good PCB layout for the PI6C48543LEX involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to avoid routing high-speed signals near the device's power pins.
To ensure proper power-up and initialization of the PI6C48543LEX, make sure to follow the recommended power-up sequence, which is to apply VCC before applying any input signals. Also, ensure that the VCC pin is properly decoupled and that the device is operated within its recommended operating conditions.
The PI6C48543LEX has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power dissipation for extended periods. Also, follow the recommended PCB layout guidelines to minimize thermal resistance.
To troubleshoot issues with the PI6C48543LEX, start by verifying the input voltage and current, and checking for any signs of overheating. Use an oscilloscope to monitor the output voltage and current, and check for any noise or ringing on the output. Also, ensure that the device is properly decoupled and that the PCB layout is correct.
Yes, the PI6C48543LEX is a high-frequency device and can be susceptible to EMI/EMC issues. To minimize EMI/EMC issues, use a shielded enclosure, keep the device away from other high-frequency sources, and use EMI filters or shielding on the input and output lines. Also, follow the recommended PCB layout guidelines to minimize radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6C48543LEX Overview

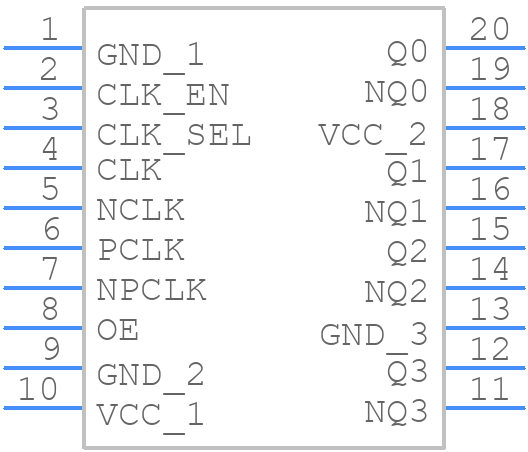

Use the download button to access the PI6C48543LEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6C4,
or try a keyword search, such as Clock Drivers
