PI6C4911505-04LIE - Diodes Incorporated

Description: Clock Fanout Buffer (Distribution), Multiplexer IC 2:5 1.5 GHz 20-TSSOP (0.173", 4.40mm Width)

Download PI6C4911505-04LIE Model
Schematic
symbols

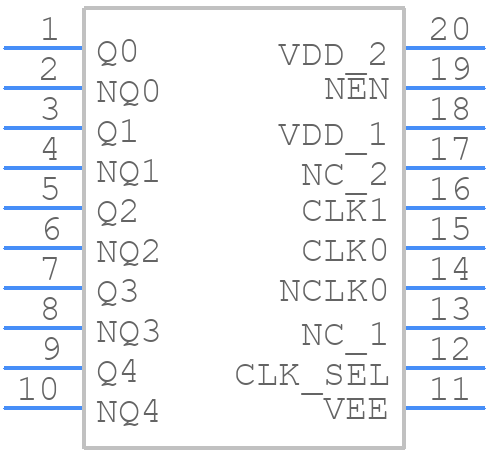

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PI6C4911505-04LIE - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - 20-Pin TSSOP(L)
click to zoom
3D Models
PI6C4911505-04LIE - Diodes Incorporated  - 3D model - Small Outline Packages - 20-Pin TSSOP(L)
click to zoom

PI6C4911505-04LIE Details

  • Manufacturer Part Number:

    PI6C4911505-04LIE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.173 INCH, GREEN, MO-153F/AC, TSSOP-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AT 3.3 V SUPPLY

  • Family:

    PI6

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Prop. Delay@Nom-Sup:

    2.1 ns

  • Propagation Delay (tpd):

    2.1 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.035 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • fmax-Min:

    1500 MHz

PI6C4911505-04LIE Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a 4-layer PCB with a solid ground plane, and to keep the clock signal traces as short as possible and away from the power and ground planes to minimize noise coupling.
  • The PI6C4911505-04LIE requires a power-up sequence of VCC followed by VTT, and the reset pin (RST) should be pulled high during power-up. Additionally, the device should be initialized by writing to the control register after power-up.
  • The PI6C4911505-04LIE can support clock frequencies up to 150 MHz, but the maximum frequency may vary depending on the specific application and PCB layout.
  • The PI6C4911505-04LIE has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with a thermal pad, and a heat sink may be required for high-power applications.
  • Diodes Incorporated recommends using a series termination scheme with a 50Ω resistor and a 10nF capacitor for each output signal to minimize reflections and ensure signal integrity.
