A good PCB layout for the PI6C49CB02Q2WEX involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper power-on and power-off sequencing, the PI6C49CB02Q2WEX requires a controlled ramp-up and ramp-down of the input voltage. A soft-start circuit or a power sequencer can be used to achieve this.
The PI6C49CB02Q2WEX has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with a thermal pad, and a heat sink may be required for high-power applications.
To troubleshoot issues with the PI6C49CB02Q2WEX, check the input voltage, output voltage, and current consumption. Verify that the device is properly powered on and off, and check for any signs of overheating or physical damage.
Yes, the PI6C49CB02Q2WEX is a high-frequency device and requires proper EMI/EMC design considerations. Use shielding, filtering, and grounding techniques to minimize electromagnetic interference and ensure compliance with regulatory standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6C49CB02Q2WEX Overview

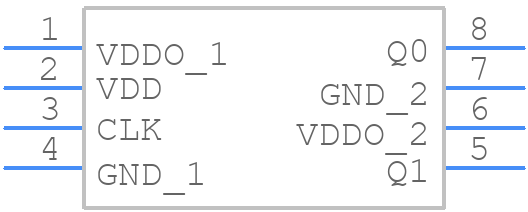

Use the download button to access the PI6C49CB02Q2WEX schematic symbol, PCB footprint, and 3D model.
