PI6C49CB02Q3WEX - Diodes Incorporated

Description: CLOCK BUFFER SO-8

Download PI6C49CB02Q3WEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

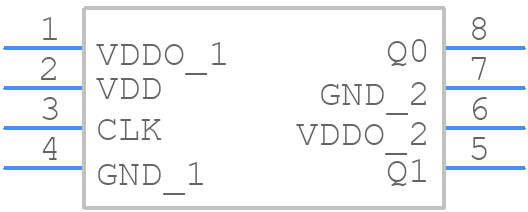

Symbol
PI6C49CB02Q3WEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI6C49CB02Q3WEX - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOIC (W)
click to zoom
3D Models
PI6C49CB02Q3WEX - Diodes Incorporated - 3D model - Small Outline Packages - 8-SOIC (W)
click to zoom

PI6C49CB02Q3WEX Details

  • Manufacturer Part Number:

    PI6C49CB02Q3WEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AT 3.3V NOM SUPPLY

  • Family:

    PI6

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.0001 A

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    5 mA

  • Prop. Delay@Nom-Sup:

    2.8 ns

  • Propagation Delay (tpd):

    3 ns

  • Same Edge Skew-Max (tskwd):

    0.08 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • fmax-Min:

    4 MHz

PI6C49CB02Q3WEX Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance of the PI6C49CB02Q3WEX can be found in the Diodes Incorporated application note AN-114, which provides guidelines for PCB layout, component placement, and thermal management.
  • To ensure reliable operation over the full temperature range, it is recommended to follow the thermal management guidelines provided in the datasheet, including keeping the junction temperature below 125°C and using a heat sink if necessary. Additionally, ensure that the device is operated within the specified voltage and current ranges.
  • The PI6C49CB02Q3WEX has built-in ESD protection and latch-up prevention measures, including ESD diodes and clamp circuits. However, it is still recommended to follow proper ESD handling procedures during assembly and testing to prevent damage to the device.
  • Yes, the PI6C49CB02Q3WEX is suitable for use in high-reliability and automotive applications. It meets the requirements of AEC-Q100 and is manufactured using a qualified process. However, it is recommended to consult with Diodes Incorporated for specific requirements and testing protocols.
  • The recommended soldering profile for the PI6C49CB02Q3WEX can be found in the Diodes Incorporated application note AN-117, which provides guidelines for reflow soldering, wave soldering, and hand soldering.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI6C49CB02Q3WEX Overview

Use the download button to access the PI6C49CB02Q3WEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6C4, or try a keyword search, such as Clock Drivers
