PI6C49CB04BQ2WEX - Diodes Incorporated

Description: Clock Buffer LOW SKEW 1 TO 4 CLOCK BUFFER

Download PI6C49CB04BQ2WEX Model

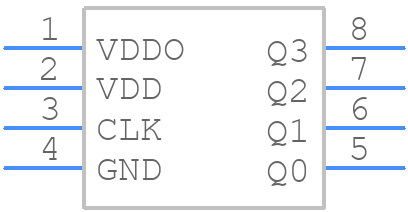

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PI6C49CB04BQ2WEX - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOIC (W)
click to zoom
3D Models
PI6C49CB04BQ2WEX - Diodes Incorporated  - 3D model - Small Outline Packages - 8-SOIC (W)
click to zoom

PI6C49CB04BQ2WEX Details

  • Manufacturer Part Number:

    PI6C49CB04BQ2WEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2019-10-15

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Family:

    6C

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.008 A

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    38 mA

  • Prop. Delay@Nom-Sup:

    5 ns

  • Propagation Delay (tpd):

    5 ns

  • Same Edge Skew-Max (tskwd):

    0.25 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.425 V

  • Supply Voltage-Nom (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • fmax-Min:

    160 MHz

PI6C49CB04BQ2WEX Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the PI6C49CB04BQ2WEX is 2.5V to 5.5V.
  • To ensure proper power-on and power-off, it is recommended to follow a power-up sequence of VCC first, then VTT, and power-down sequence of VTT first, then VCC.
  • The maximum current rating for the PI6C49CB04BQ2WEX is 100mA per pin, with a total device current rating of 500mA.
  • To handle thermal management, it is recommended to provide adequate heat sinking, use a thermal pad, and ensure good airflow around the device.
  • The recommended PCB layout for the PI6C49CB04BQ2WEX includes using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and improve signal integrity.
