A good PCB layout for the PI6C49CB04CQ3WEX involves keeping the input and output traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper power-up and initialization of the PI6C49CB04CQ3WEX, make sure to follow the recommended power-up sequence, which involves applying power to the VCC pin first, followed by the VIN pin. Also, ensure that the input voltage is within the recommended range and that the device is properly decoupled.
The PI6C49CB04CQ3WEX has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. A thermal pad on the bottom of the package helps to dissipate heat, and a thermal interface material can be used to improve heat transfer.
To troubleshoot issues with the PI6C49CB04CQ3WEX, start by verifying the power supply and input voltage. Check for proper decoupling and ensure that the device is properly configured. Use an oscilloscope to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Yes, the PI6C49CB04CQ3WEX is a high-frequency device and requires proper EMI/EMC design considerations. Use shielding, filtering, and grounding techniques to minimize electromagnetic interference. Follow the recommended PCB layout and decoupling guidelines to reduce emissions and improve immunity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6C49CB04CQ3WEX Overview

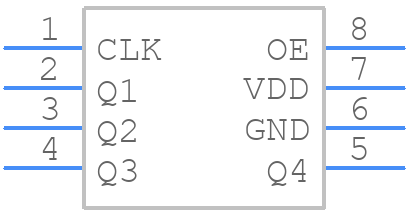

Use the download button to access the PI6C49CB04CQ3WEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6C4,
or try a keyword search, such as Clock Drivers
