PI6CB332001AZXBIEX - Diodes Incorporated

Description: Clock Buffer Clock Buffer V-QFN60 60-80 T&R 3K

Download PI6CB332001AZXBIEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

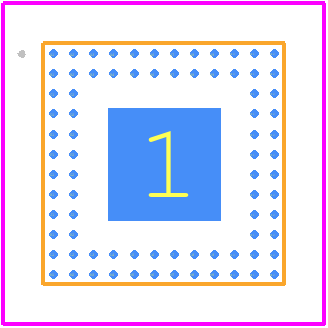

PI6CB332001AZXBIEX - Diodes Incorporated PCB footprint - Other - Other - PI6CB332001AZXBIEX-2
click to zoom
3D Models
PI6CB332001AZXBIEX - Diodes Incorporated  - 3D model - Other - PI6CB332001AZXBIEX-2
click to zoom

PI6CB332001AZXBIEX Details

  • Manufacturer Part Number:

    PI6CB332001AZXBIEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AQFN-80

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Family:

    6C

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N80

  • Length:

    6 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Number of Functions:

    1

  • Number of Terminals:

    80

  • Number of True Outputs:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC80,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    200 mA

  • Propagation Delay (tpd):

    3 ns

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • fmax-Min:

    400 MHz

PI6CB332001AZXBIEX Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the PI6CB332001AZXBIEX is -40°C to 85°C.
  • To ensure proper power-on and power-off, follow the recommended power sequencing and voltage ramp-up/ramp-down rates specified in the datasheet. Additionally, ensure that the power supply is stable and within the recommended voltage range.
  • The maximum current rating for the PI6CB332001AZXBIEX is 1A per channel. However, it's essential to consider the thermal and power dissipation limitations when designing the system.
  • To prevent ESD damage, follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, ensure that the device is properly grounded during assembly and testing.
  • To minimize signal integrity issues and ensure proper operation, follow the recommended PCB layout and routing guidelines provided in the datasheet or application notes. This includes keeping signal traces short, using proper termination, and avoiding noise coupling.
