PI6CB33201ZDIEX - Diodes Incorporated

Description: 3.3V Supply Voltage y HCSL Input of 100MHz; Also supports 50MHz, 125MHz, or 133.33MHz via SMBus y Two Differential Low-Power HCSL Outputs with On-Chip Termination y Default ZOUT = 100Ω y Spread-Spectrum Tolerant y Individual Output Enable y Programmable Slew Rate and Output Amplitude for each output y Differential Outputs Blocked until PLL is Locked y Strapping Pins or SMBus for Configuration y Differential output-to-output skew <50ps

Download PI6CB33201ZDIEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

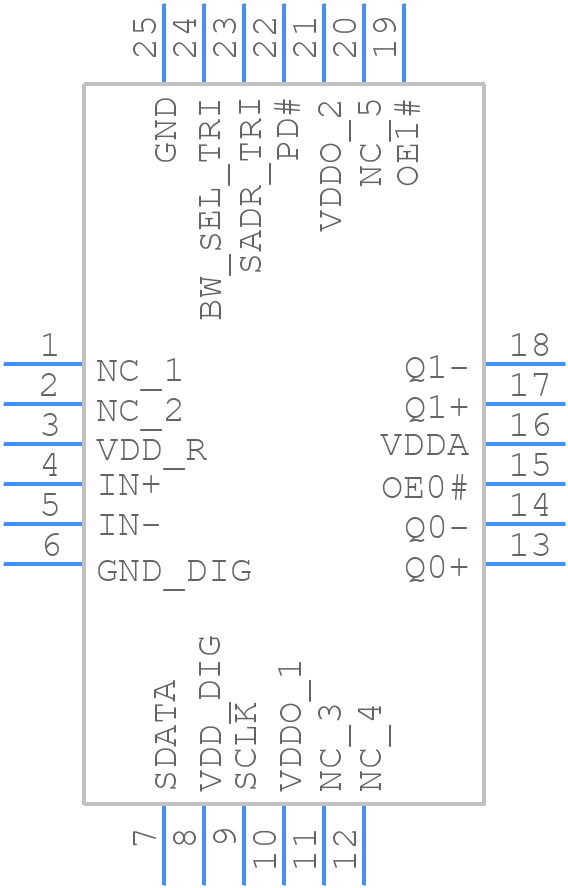

PI6CB33201ZDIEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PI6CB33201ZDIEX - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-TQFN (ZD)
click to zoom
3D Models
PI6CB33201ZDIEX - Diodes Incorporated - 3D model - Quad Flat No-Lead - 24-TQFN (ZD)
click to zoom

PI6CB33201ZDIEX Details

  • Manufacturer Part Number:

    PI6CB33201ZDIEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2019-11-18

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Family:

    6C

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    4 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    25 mA

  • Propagation Delay (tpd):

    3 ns

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • fmax-Min:

    133.33 MHz

PI6CB33201ZDIEX Frequently Asked Questions (FAQs)

  • Diodes Incorporated provides a recommended PCB layout in their application note AN-114, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize signal integrity issues.
  • Diodes Incorporated recommends using a thermal pad on the bottom of the package to improve heat dissipation. Additionally, a heat sink or thermal interface material can be used to further reduce thermal resistance. The application note AN-114 provides more detailed guidance on thermal management.
  • The maximum operating temperature range for PI6CB33201ZDIEX is -40°C to 125°C, as specified in the datasheet. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal runaway.
  • Yes, PI6CB33201ZDIEX is designed to withstand high-vibration environments. However, it's essential to follow proper PCB design and assembly guidelines to ensure the device is securely attached to the board and can withstand mechanical stress.
  • Diodes Incorporated provides a troubleshooting guide in their application note AN-114, which covers common issues and their solutions. Additionally, engineers can use simulation tools and oscilloscopes to debug and analyze signal integrity issues.
