A good PCB layout for the PI6CXG06F62AFBEIE should prioritize signal integrity, minimize noise, and ensure proper power and ground connections. A 4-layer PCB with a solid ground plane and separate power planes for the input and output is recommended. Additionally, keep the input and output traces short and away from each other to minimize crosstalk.
The PI6CXG06F62AFBEIE requires a single 3.3V or 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly biased by connecting the VCC pin to the power supply and the GND pin to a solid ground plane. Additionally, decouple the power supply with a 10uF capacitor to minimize noise and ripple.
The PI6CXG06F62AFBEIE supports data transfer rates up to 6 Gbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and PCIe.
The PI6CXG06F62AFBEIE has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device within the recommended operating temperature range by providing adequate heat dissipation through a heat sink or thermal pad. Ensure good airflow around the device and avoid blocking the thermal pads on the package.
Yes, the PI6CXG06F62AFBEIE is a sensitive device and requires proper ESD protection during handling and assembly. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. Avoid touching the device pins or handling the device in a way that could generate static electricity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6CXG06F62AFBEIE Overview

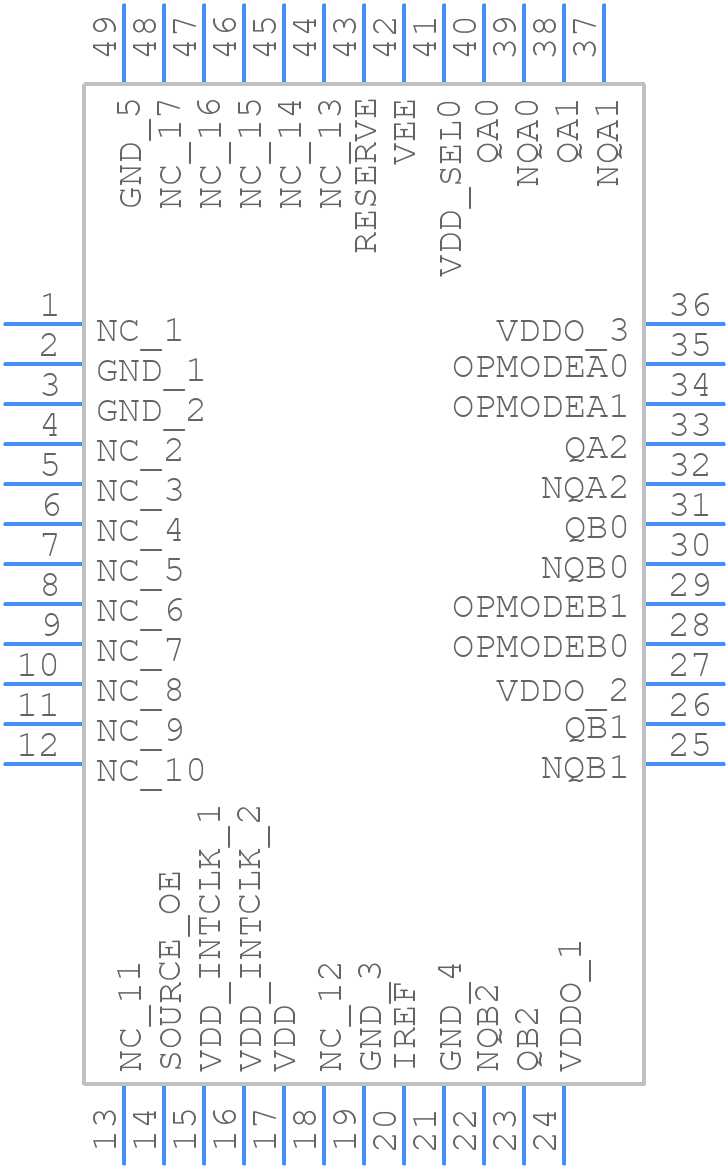

Use the download button to access the PI6CXG06F62AFBEIE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6CX,
or try a keyword search, such as Clock Generators
