Diodes Incorporated recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, a thermal pad on the bottom of the device should be connected to a thermal plane or a heat sink.
To ensure signal integrity, use controlled impedance traces (85 ohms for PCIe lanes), and keep the traces as short as possible. Use a common mode filter or a PCIe repeater if the traces are longer than 12 inches. Also, use a high-quality PCB material with low dielectric loss.
The PI6PCIEB24ZDEX is rated for industrial temperature range, which is -40°C to 85°C. However, the device can operate up to 100°C with derating. Consult the datasheet for derating curves and thermal management guidelines.
Yes, the PI6PCIEB24ZDEX can be used in a PCIe Gen3 application, but it is limited to 5 GT/s (Gen2) speed due to its architecture. For Gen3 speeds (8 GT/s), a different device or a PCIe redriver/repeater is required.
The PI6PCIEB24ZDEX requires a specific power sequencing to ensure proper operation. The VCCIO and VCC pins should be powered up simultaneously, followed by the VREF pin. The power sequencing should be within 100 ms. Consult the datasheet for detailed power-up and power-down sequencing requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6PCIEB24ZDEX Overview

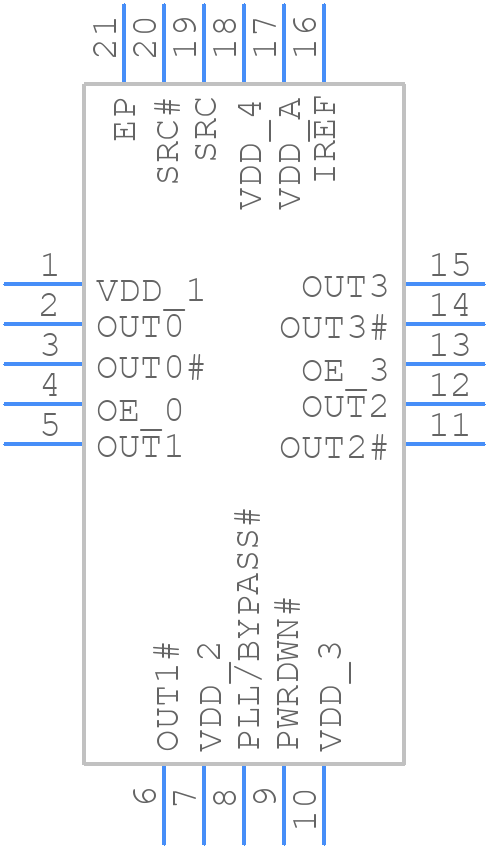

Use the download button to access the PI6PCIEB24ZDEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6PC,
or try a keyword search, such as Clock Drivers
