Description:Buffer, ReDriver 2 Channel 400kHz 8-MSOP Port A operating voltage range: 0.8 V to 5.5 V → Port B operating voltage range: 2.2 V to 5.5 V → Voltage level translation from 0.8 V to 5.5 V and from 2.2 V to 5.5 V
Diodes Incorporated recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce signal reflections and noise. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure reliability in high-temperature applications, it is recommended to follow the recommended operating temperature range, use a heat sink if necessary, and ensure good thermal conductivity between the device and the PCB. Additionally, consider using a thermal interface material to reduce thermal resistance.
The maximum current rating for PI6ULS5V9517BUEX is 1A per channel. However, it is recommended to derate the current based on the ambient temperature and the PCB layout to ensure reliable operation.
To troubleshoot issues with PI6ULS5V9517BUEX, check the input voltage, output voltage, and current consumption using an oscilloscope or a multimeter. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Check the PCB layout for any signal integrity issues and ensure that the device is operated within the recommended specifications.
Yes, PI6ULS5V9517BUEX is compatible with lead-free soldering processes. The device is RoHS-compliant and can be soldered using lead-free soldering techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI6ULS5V9517BUEX Overview

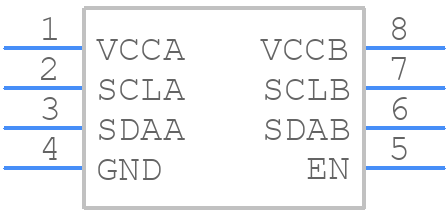

Use the download button to access the PI6ULS5V9517BUEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI6UL,
or try a keyword search, such as Other Interface ICs
