A good PCB layout for the PI7C9X2G304EVAZXAEX would involve keeping the signal traces short and direct, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure signal integrity, it's essential to maintain a controlled impedance environment, use differential signaling, and keep the signal traces away from noise sources. Additionally, using a termination resistor and a capacitor in series can help to reduce signal reflections and improve signal quality.
The PI7C9X2G304EVAZXAEX has an operating temperature range of -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
It's recommended to power up the PI7C9X2G304EVAZXAEX in a specific sequence to prevent damage to the device. The recommended power-up sequence is VCC, then VTT, and finally VREF. Similarly, during power-down, the sequence should be reversed.
The recommended input termination for the PI7C9X2G304EVAZXAEX is a 50-ohm resistor in series with a 50-ohm terminator. For output termination, a 50-ohm resistor in series with a 50-ohm terminator is also recommended.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI7C9X2G304EVAZXAEX Overview

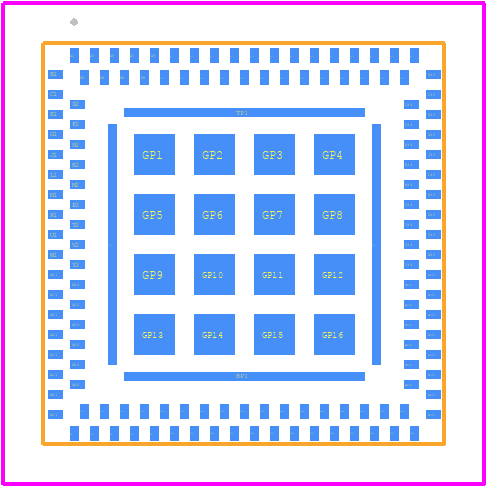

Use the download button to access the PI7C9X2G304EVAZXAEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI7C9,
or try a keyword search, such as Bus Controllers
