A good PCB layout for the PI7C9X2G404EVAZXAEX would involve keeping the signal traces short and direct, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure signal integrity, it's essential to maintain a controlled impedance environment, use differential signaling, and keep the signal traces away from noise sources. Additionally, using a signal integrity analysis tool can help identify potential issues before they become problems.
The PI7C9X2G404EVAZXAEX has a maximum junction temperature of 125°C. To manage thermal performance, ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the device. It's also essential to follow the recommended thermal design guidelines in the datasheet.
Yes, the PI7C9X2G404EVAZXAEX is a PCIe Gen 4.0 switch, making it suitable for PCIe applications. However, ensure that the device is configured correctly, and the system is designed to meet the PCIe specification requirements.
To troubleshoot issues with the PI7C9X2G404EVAZXAEX, start by reviewing the datasheet and application notes. Check the device's configuration, signal integrity, and power supply. Use diagnostic tools such as oscilloscopes and logic analyzers to identify the root cause of the issue. If necessary, contact Diodes Incorporated's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI7C9X2G404EVAZXAEX Overview

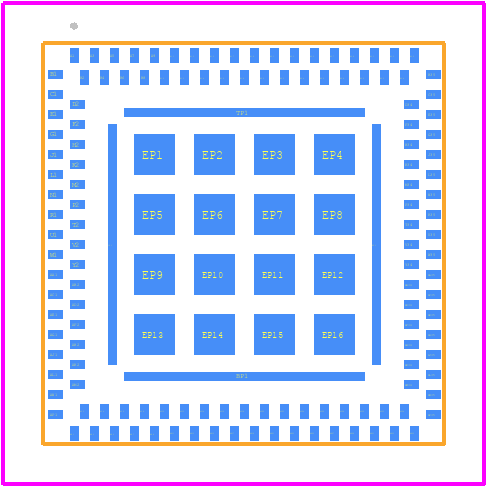

Use the download button to access the PI7C9X2G404EVAZXAEX schematic symbol, PCB footprint, and 3D model.
