PI7C9X2G606PRENJAEX - Diodes Incorporated

Description: PCI Interface IC Packet Switch LBGA-196 T&R 1K

Download PI7C9X2G606PRENJAEX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PI7C9X2G606PRENJAEX - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints

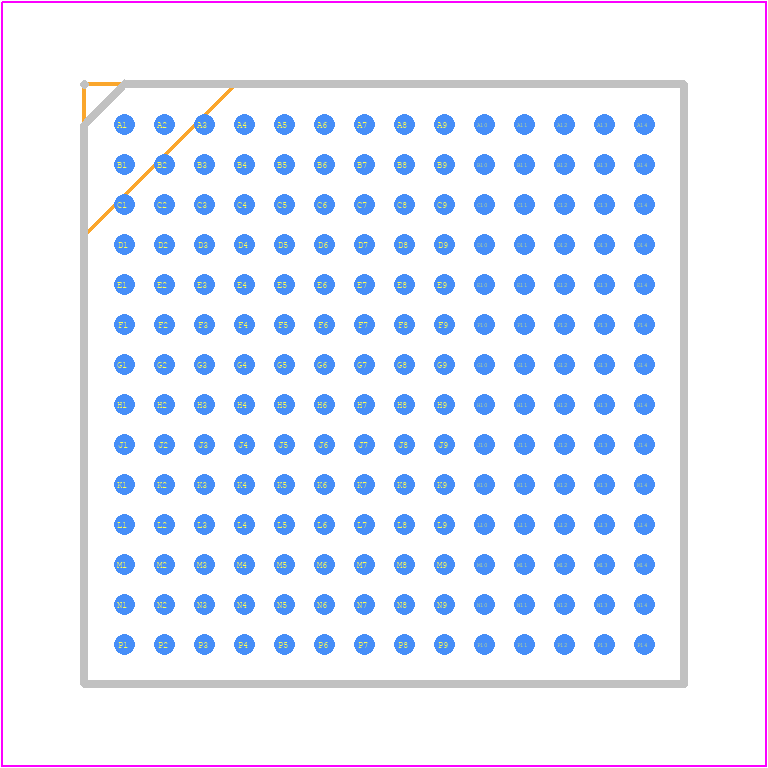

PI7C9X2G606PRENJAEX - Diodes Incorporated PCB footprint - BGA - BGA - NJA(NJA196)
click to zoom
3D Models
PI7C9X2G606PRENJAEX - Diodes Incorporated - 3D model - BGA - NJA(NJA196)
click to zoom

PI7C9X2G606PRENJAEX Details

  • Manufacturer Part Number:

    PI7C9X2G606PRENJAEX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LBGA-196

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Bus Compatibility:

    I2C; SMBUS

  • Clock Frequency-Max:

    100 MHz

  • Data Transfer Rate-Max:

    625 MBps

  • JESD-30 Code:

    S-PBGA-B196

  • Length:

    15 mm

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA196,14X14,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Seated Height-Max:

    1.63 mm

  • Supply Voltage-Max:

    1.1 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, PCI

PI7C9X2G606PRENJAEX Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the PI7C9X2G606PRENJAEX is -40°C to 85°C.
  • To ensure signal integrity, use controlled impedance traces, minimize signal routing, and consider using signal termination resistors. Additionally, follow the recommended PCB layout guidelines provided by Diodes Incorporated.
  • The maximum power dissipation for the PI7C9X2G606PRENJAEX is 1.4W. Ensure that the device is properly heat-sinked and operated within the recommended temperature range to avoid overheating.
  • Yes, the PI7C9X2G606PRENJAEX is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that you follow the recommended operating conditions and guidelines for these applications.
  • Follow standard ESD handling procedures, such as using an ESD wrist strap, ESD mat, and ESD-safe tools. The PI7C9X2G606PRENJAEX has built-in ESD protection, but it's still important to handle the device with care to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI7C9X2G606PRENJAEX Overview

Use the download button to access the PI7C9X2G606PRENJAEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI7C9, or try a keyword search, such as Bus Controllers
