Description:PCI Interface IC Packet Switch LBGA-196 T&R 1K
• 12-lane PCI Express® Gen 2 Switch with 6 PCI Express ports
• Supports “Cut-through”(Default) as well as “Store and Forward” mode for packet switching
• Peer-to-peer switching between any two downstream ports
• 150 ns typical latency for packet routed through Switch without blocking
• Integrated reference clock for downstream ports
• Register configurable with optional EEPROM, SMBus or I2C
• Compliant with System Management (SM) Bus Revision 2.0
• Comp
The recommended operating temperature range for the PI7C9X2G612GPDNJEX is -40°C to 85°C (industrial grade) and -40°C to 125°C (extended industrial grade).
To ensure signal integrity, it's recommended to follow proper PCB design guidelines, use controlled impedance traces, and add termination resistors as needed. Additionally, consider using signal conditioning components, such as capacitors or filters, to reduce noise and jitter.
The maximum power consumption of the PI7C9X2G612GPDNJEX is typically around 1.5W, but this can vary depending on the specific application and operating conditions. It's essential to check the datasheet and perform thermal calculations to ensure the device operates within its recommended power envelope.
While the PI7C9X2G612GPDNJEX is a high-performance device, it may not meet the specific requirements for high-reliability or aerospace applications. Engineers should consult with Diodes Incorporated or a qualified representative to determine if the device meets the necessary standards and certifications for their specific application.
To troubleshoot issues with the PI7C9X2G612GPDNJEX, start by reviewing the datasheet and application notes. Check for proper power supply, signal integrity, and termination. Use oscilloscopes or logic analyzers to debug signal issues. If problems persist, contact Diodes Incorporated's technical support or a qualified representative for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI7C9X2G612GPDNJEX Overview

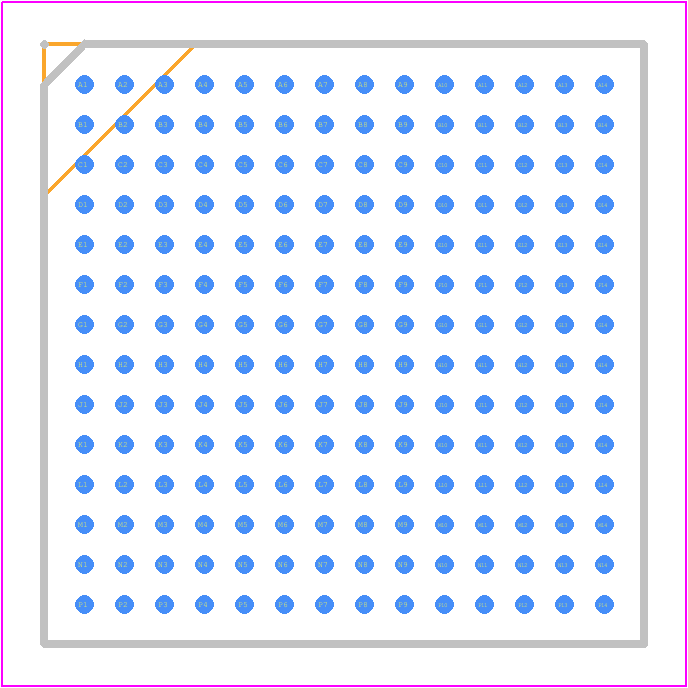

Use the download button to access the PI7C9X2G612GPDNJEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI7C9,
or try a keyword search, such as Bus Controllers
