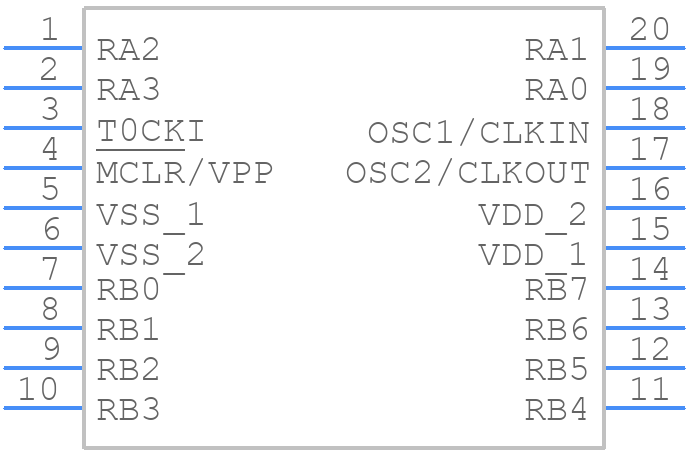

PIC16C56A-04/SS - Microchip

PIC16C56A-04/SS Details

• Manufacturer Part Number:

  PIC16C56A-04/SS

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  SSOP

• Package Description:

  0.209 INCH, PLASTIC, MO-150, SSOP-20

• Pin Count:

  20

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  111 Weeks

• Date Of Intro:

  1990-01-01

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  3

• Has ADC:

  NO

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  PIC16

• Clock Frequency-Max:

  4 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  7.2 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of I/O Lines:

  12

• Number of Terminals:

  20

• Number of Timers:

  1

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  12

• Operating Temperature-Max:

  70 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  25

• RAM (words):

  25

• ROM (words):

  1024

• ROM Programmability:

  OTPROM

• Seated Height-Max:

  1.98 mm

• Speed:

  4 MHz

• Supply Current-Max:

  2.4 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  5.25 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
