PIC16F18076-I/PT footprint, schematic symbol and 3D model by Microchip

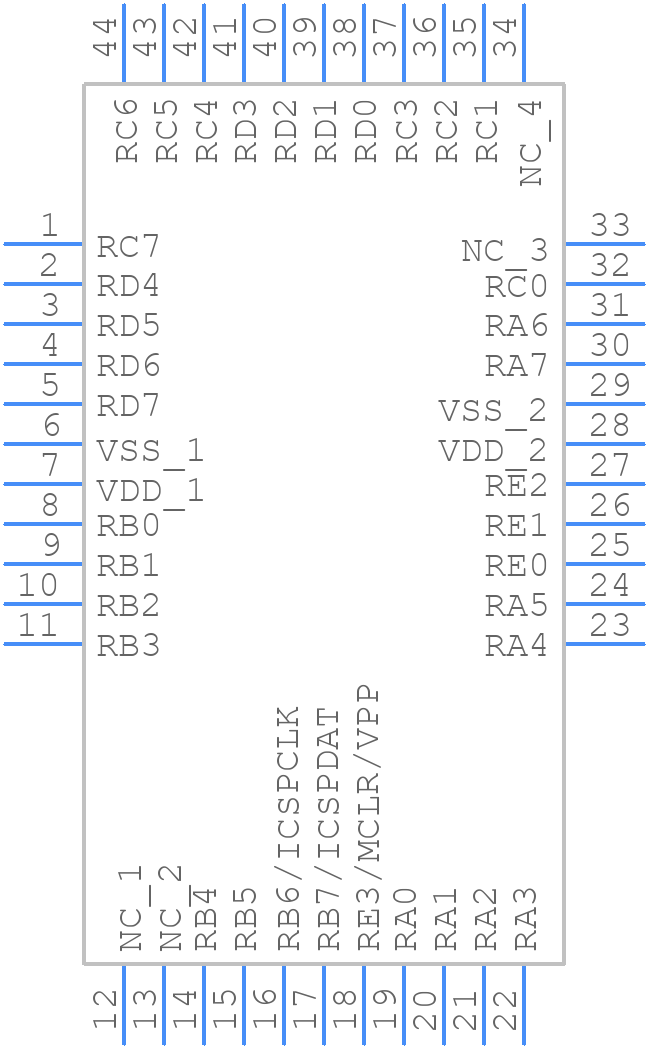

Symbol

click to zoom

PCB Footprints

PIC16F18076-I/PT - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 44-Lead Plastic Thin Quad Flatpack (PT) - 10x10x1.0 mm Body [TQFP]

click to zoom

3D Models

PIC16F18076-I/PT - Microchip - 3D model - Quad Flat Packages - 44-Lead Plastic Thin Quad Flatpack (PT) - 10x10x1.0 mm Body [TQFP]

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PIC16F18076-I/PT
Part Number PIC16F18076-I/PT
Manufacturer Microchip
Pin Count 44
Part Category LED (Multiple)
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - 44-Lead Plastic Thin Quad Flatpack (PT) - 10x10x1.0 mm Body [TQFP]
Pinout / Pin List Click Here (Member Only)

Trust Checks

System Verified

PIC16F18076-I/PT Overview

Use the download button to access the PIC16F18076-I/PT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PIC16, or try a keyword search, such as Microcontrollers
