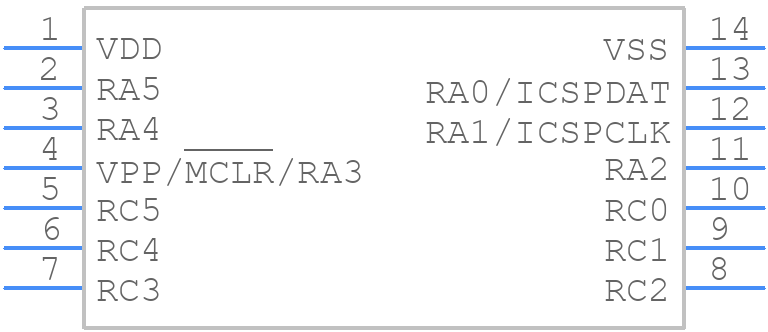

PIC16LF18326-I/ST - Microchip

PIC16LF18326-I/ST Details

• Manufacturer Part Number:

  PIC16LF18326-I/ST

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  TSSOP-14

• Pin Count:

  14

• Manufacturer Package Code:

  TSSOP-14

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  7 Weeks

• Date Of Intro:

  2016-04-06

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  18

• Has ADC:

  YES

• Additional Feature:

  OPERATES WITH 1.8V MIN @ 16 MHZ

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  PIC16

• Clock Frequency-Max:

  32 MHz

• DAC Channels:

  YES

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e3

• Length:

  5 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  1

• Number of I/O Lines:

  12

• Number of Serial I/Os:

  1

• Number of Terminals:

  14

• Number of Timers:

  9

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• RAM (bytes):

  2048

• RAM (words):

  2048

• ROM (words):

  16384

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.2 mm

• Speed:

  32 MHz

• Supply Current-Max:

  2.9 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  2.5 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
