PIC18F26K42-E/MX - Microchip

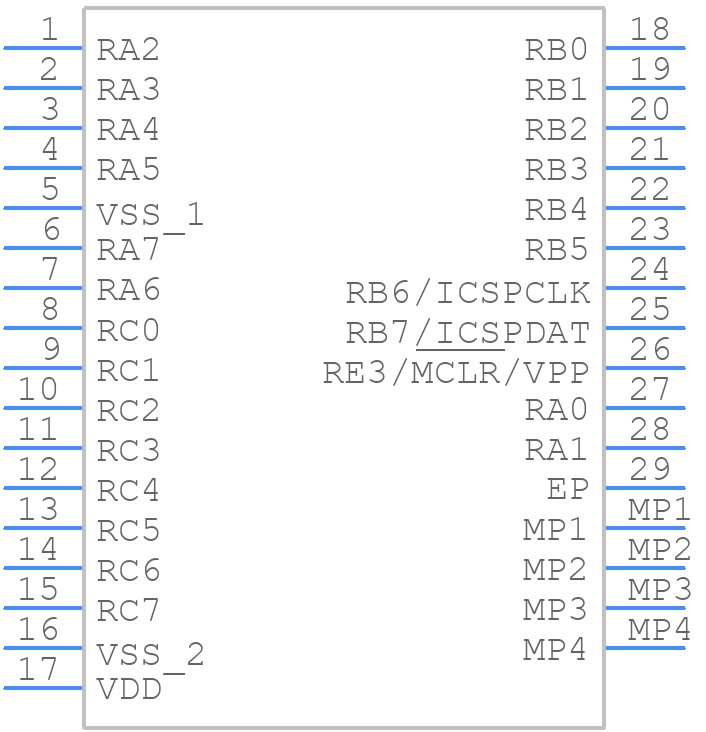

PIC18F26K42-E/MX Details

• Manufacturer Part Number:

  PIC18F26K42-E/MX

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  UQFN-28

• Pin Count:

  28

• Manufacturer Package Code:

  UQFN-28

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  8 Weeks

• Date Of Intro:

  2018-09-21

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  7

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERATES WITH 2.5VMIN @32 MHZ AND 2.3VMIN @16MHZ

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  PIC18

• Clock Frequency-Max:

  64 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQCC-N28

• JESD-609 Code:

  e3

• Length:

  6 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  2

• Number of External Interrupts:

  3

• Number of I/O Lines:

  25

• Number of Terminals:

  28

• Number of Timers:

  7

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC28,.24SQ,25

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• RAM (bytes):

  4096

• RAM (words):

  4096

• ROM (words):

  65536

• ROM Programmability:

  FLASH

• Seated Height-Max:

  0.6 mm

• Speed:

  64 MHz

• Supply Current-Max:

  85 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  6 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
