PIC18F43K22-I/ML - Microchip

Description: MCU 8-bit PIC RISC 8KB Flash 2.5V/3.3V/5V Automotive 44-Pin QFN EP Tube

Download PIC18F43K22-I/ML Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

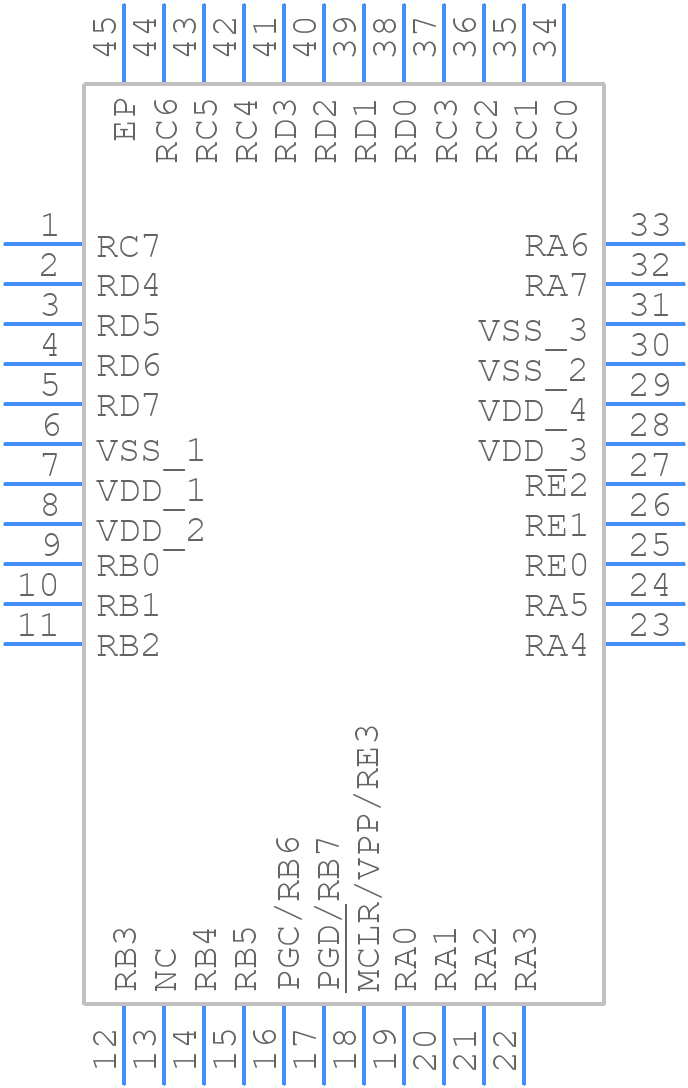

Symbol
PIC18F43K22-I/ML - Microchip - PCB symbol
click to zoom
PCB Footprints
PIC18F43K22-I/ML - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 44-Lead Plastic Quad Flat, No Lead Package (ML) - 8x8 mm Body [QFN or VQFN]
click to zoom
3D Models
PIC18F43K22-I/ML - Microchip - 3D model - Quad Flat No-Lead - 44-Lead Plastic Quad Flat, No Lead Package (ML) - 8x8 mm Body [QFN or VQFN]
click to zoom

PIC18F43K22-I/ML Details

  • Manufacturer Part Number:

    PIC18F43K22-I/ML

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    44

  • Manufacturer Package Code:

    QFN-44

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    10

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES 2.3 V MINIMUM SUPPLY AT 20 MHZ

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    PIC18

  • Clock Frequency-Max:

    64 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQCC-N44

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of DMA Channels:

    3

  • Number of I/O Lines:

    36

  • Number of Terminals:

    44

  • Number of Timers:

    7

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC44,.32SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    512

  • RAM (words):

    512

  • ROM (words):

    8192

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1 mm

  • Speed:

    64 MHz

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    8 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

PIC18F43K22-I/ML Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the PIC18F43K22-I/ML is 64 MHz, but it can be overclocked to 80 MHz with a reduced operating voltage.
  • The oscillator can be configured using the FOSC2:FOSC0 bits in the CONFIG1H register. The oscillator type, frequency, and mode can be selected using these bits.
  • The maximum current that can be sourced by the I/O pins is 25 mA, and the maximum current that can be sunk is 25 mA. However, the total current sourced or sunk by all I/O pins should not exceed 200 mA.
  • The internal oscillator can be enabled by setting the INTOSC bit in the OSCCON register. The oscillator frequency can be selected using the IRCF bits in the OSCCON register.
  • The power consumption of the PIC18F43K22-I/ML in sleep mode depends on the clock frequency and the voltage supply. At 3V and 1 MHz clock frequency, the power consumption is around 10 μA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PIC18F43K22-I/ML Overview

Use the download button to access the PIC18F43K22-I/ML schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PIC18, or try a keyword search, such as Microcontrollers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
