PIC24EP256MC202-I/SP - Microchip

Description: Microchip PIC24EP256MC202-I/SP, 16bit PIC Microcontroller, PIC24EP, 60MHz, 256 kB Flash, 28-Pin PDIP

Download PIC24EP256MC202-I/SP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

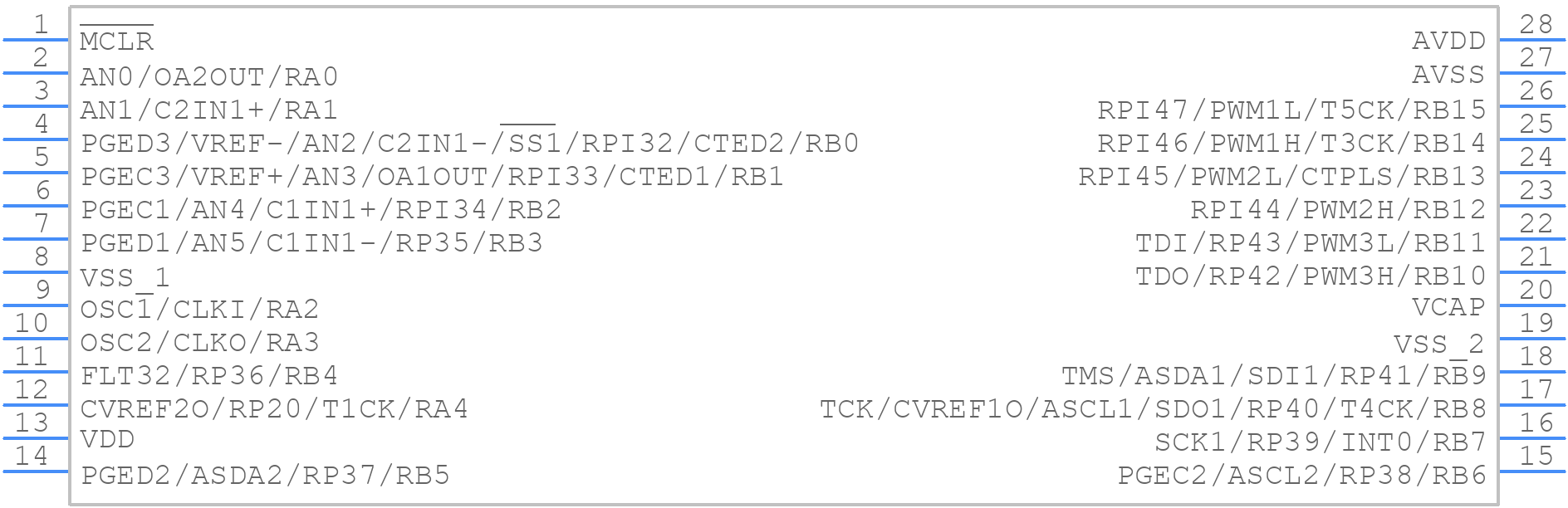

PIC24EP256MC202-I/SP - Microchip - PCB symbol
click to zoom
PCB Footprints

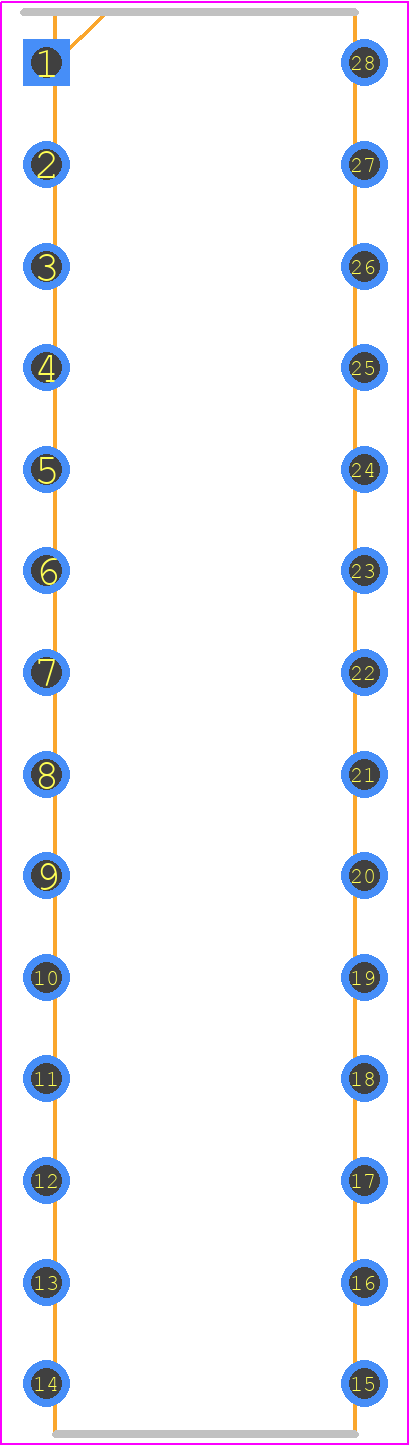

PIC24EP256MC202-I/SP - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-Lead Skinny Plastic Dual In-Line (SP) - 300 mil Body [SPDIP]
click to zoom
3D Models
PIC24EP256MC202-I/SP - Microchip - 3D model - Dual-In-Line Packages - 28-Lead Skinny Plastic Dual In-Line (SP) - 300 mil Body [SPDIP]
click to zoom

PIC24EP256MC202-I/SP Details

  • Manufacturer Part Number:

    PIC24EP256MC202-I/SP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    1.365 X 0.240 INCH, 0.120 INCH HEIGHT, 0.100 INCH PITCH, LEAD FREE, PLASTIC, SDIP-28

  • Pin Count:

    28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

PIC24EP256MC202-I/SP Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the PIC24EP256MC202-I/SP is 70 MHz.
  • The oscillator configuration is done through the FOSCSEL (Oscillator Select) bits in the FOSC (Oscillator Control) register. The oscillator can be configured for internal, external, or crystal operation.
  • The PIC24EP256MC202-I/SP has 16 KB of RAM.
  • Yes, the PIC24EP256MC202-I/SP can operate at 3.3V. The recommended operating voltage range is 2.0V to 3.6V.
  • The PIC24EP256MC202-I/SP can be programmed using the MPLAB X IDE and a programmer/debugger such as the PICkit 3 or ICD 3.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PIC24EP256MC202-I/SP Overview

Use the download button to access the PIC24EP256MC202-I/SP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PIC24, or try a keyword search, such as Microcontrollers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
