PIC32CZ8110CA80208-I/8MX - Microchip

Description: ARM® Cortex®-M7 PIC® 32CZ Microcontrollers IC 32-bit 300MHz 8MB (8M x 8) FLASH 208-TFBGA (15x15)

Download PIC32CZ8110CA80208-I/8MX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PIC32CZ8110CA80208-I/8MX - Microchip - PCB symbol
click to zoom
PCB Footprints

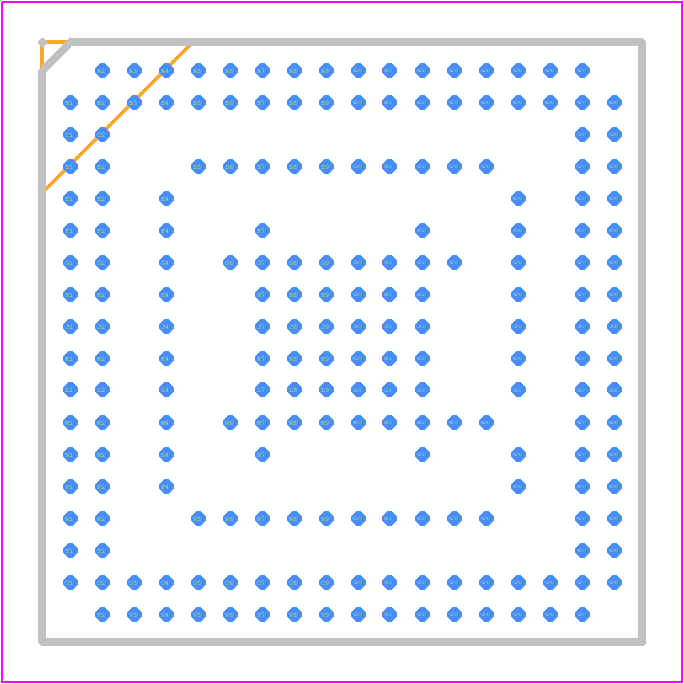

PIC32CZ8110CA80208-I/8MX - Microchip PCB footprint - BGA - BGA - 208-Ball Fine-Pitch Ball Grid Array Package (8MX) - 15x15x1.19 mm Body [TFBGA]
click to zoom
3D Models
PIC32CZ8110CA80208-I/8MX - Microchip - 3D model - BGA - 208-Ball Fine-Pitch Ball Grid Array Package (8MX) - 15x15x1.19 mm Body [TFBGA]
click to zoom

PIC32CZ8110CA80208-I/8MX Details

  • Manufacturer Part Number:

    PIC32CZ8110CA80208-I/8MX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    208

  • Manufacturer Package Code:

    TFBGA-208

  • Country Of Origin:

    Mainland China, Philippines

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • JESD-609 Code:

    e1

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

PIC32CZ8110CA80208-I/8MX Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be achieved with an external crystal oscillator is 120 MHz.
  • To configure the USB interface to work in Device mode, you need to set the USB_MODE bit in the UCFG register to 0, and then configure the USB device address and endpoints using the USB_DEVICE_ADDRESS and USB_ENDPOINT registers.
  • Yes, the PIC32CZ8110CA80208-I/8MX has an external bus interface that allows it to access external memory devices, such as SRAM or flash memory.
  • To implement a bootloader using the PIC32CZ8110CA80208-I/8MX, you need to create a firmware that can update the device's flash memory. This typically involves using a communication protocol such as UART or USB to receive the new firmware image, and then using the device's flash programming interface to write the new image to the flash memory.
  • The power consumption of the PIC32CZ8110CA80208-I/8MX in sleep mode depends on the specific sleep mode and the configuration of the device. According to the datasheet, the typical current consumption in sleep mode is around 10-20 uA, but this can be reduced to as low as 1-2 uA with proper configuration and optimization.
