PIC32MX130F064B-I/SP - Microchip

Description: MCU,PIC32MX130,40MHZ,64KB Flash,SPDIP28 Microchip PIC32MX130F064B-I/SP, 32bit PIC Microcontroller, 40MHz, 64 kB Flash, 28-Pin SPDIP

Download PIC32MX130F064B-I/SP Model

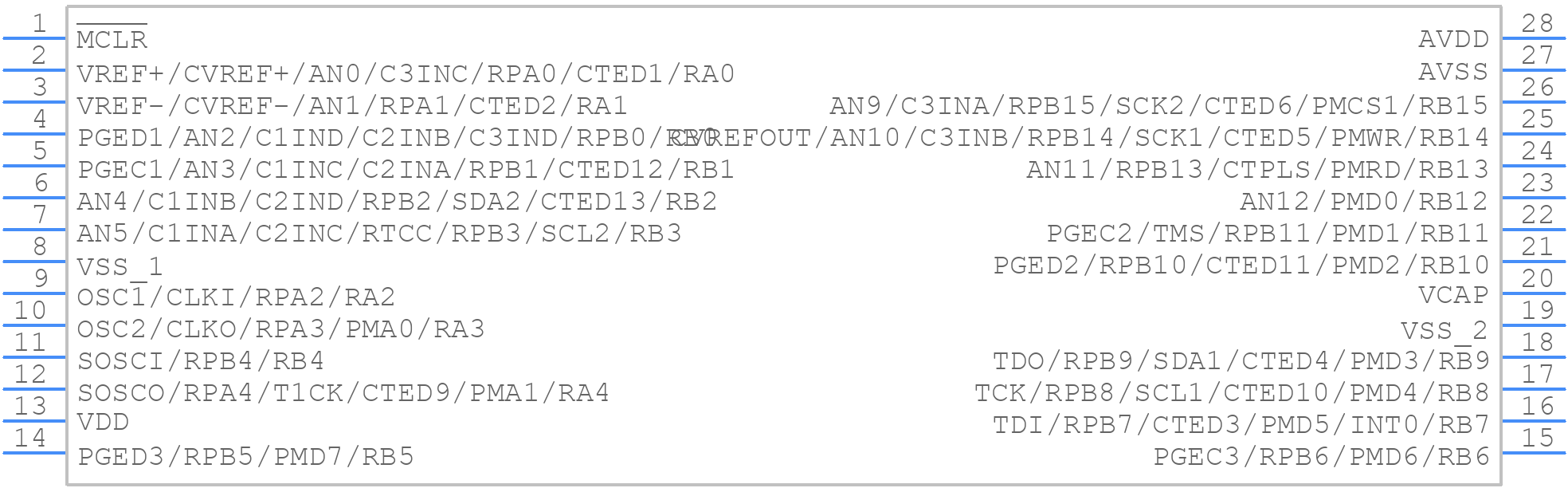

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

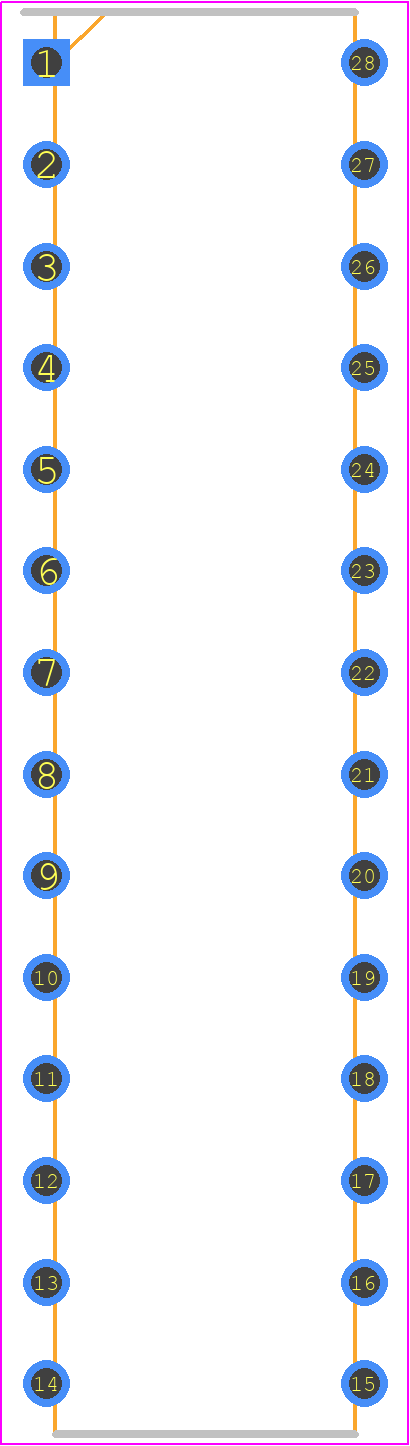

PIC32MX130F064B-I/SP - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-Lead Skinny Plastic Dual In -Line (SP)-300 mil Body [SPDIP]
click to zoom
3D Models
PIC32MX130F064B-I/SP - Microchip  - 3D model - Dual-In-Line Packages - 28-Lead Skinny Plastic Dual In -Line (SP)-300 mil Body [SPDIP]
click to zoom

PIC32MX130F064B-I/SP Details

  • Manufacturer Part Number:

    PIC32MX130F064B-I/SP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    1.365 X 0.285 INCH, 0.135 INCH HEIGHT, 0.100 INCH PITCH, LEAD FREE, PLASTIC, SDIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    SPDIP-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    PIC32

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    34.671 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    5

  • Number of I/O Lines:

    21

  • Number of Terminals:

    28

  • Number of Timers:

    5

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    16384

  • RAM (words):

    16384

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    5.08 mm

  • Speed:

    40 MHz

  • Supply Current-Max:

    37 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

PIC32MX130F064B-I/SP Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be achieved with an external crystal oscillator is 50 MHz. However, the device can also be overclocked up to 80 MHz with a high-speed crystal oscillator, but this is not recommended for production designs.
  • To configure the oscillator for optimal performance, you should use a high-quality crystal oscillator with a load capacitance of 10-20 pF, and ensure that the oscillator pins (OSCI and OSCO) are properly decoupled with 10-100 nF capacitors. You should also enable the PLL (Phase-Locked Loop) to achieve the desired clock frequency.
  • The maximum amount of current that can be sourced or sunk by the GPIO pins is 25 mA per pin. However, the total current sourced or sunk by all GPIO pins should not exceed 200 mA to prevent overheating and damage to the device.
  • To implement a reliable BOR function, you should use an external voltage supervisor IC, such as the MCP809, which can detect voltage drops and reset the microcontroller. You should also ensure that the BOR threshold is set correctly, and that the device is properly decoupled with capacitors to prevent voltage drops during power-up and power-down.
  • The best way to implement a bootloader for the PIC32MX130F064B-I/SP is to use the Microchip Harmony framework, which provides a bootloader module that can be customized for your specific application. You should also ensure that the bootloader is properly secured with encryption and authentication mechanisms to prevent unauthorized access.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PIC32MX130F064B-I/SP Overview

Use the download button to access the PIC32MX130F064B-I/SP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PIC32, or try a keyword search, such as Microcontrollers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
