PIC32MX154F128B-I/MM - Microchip

Description: 32-bit Microcontrollers - MCU 32 Bit MCU, 128KB Flash, 32KB RAM, 28 Pin, 3 Comp, CTMU, RTCC

Download PIC32MX154F128B-I/MM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

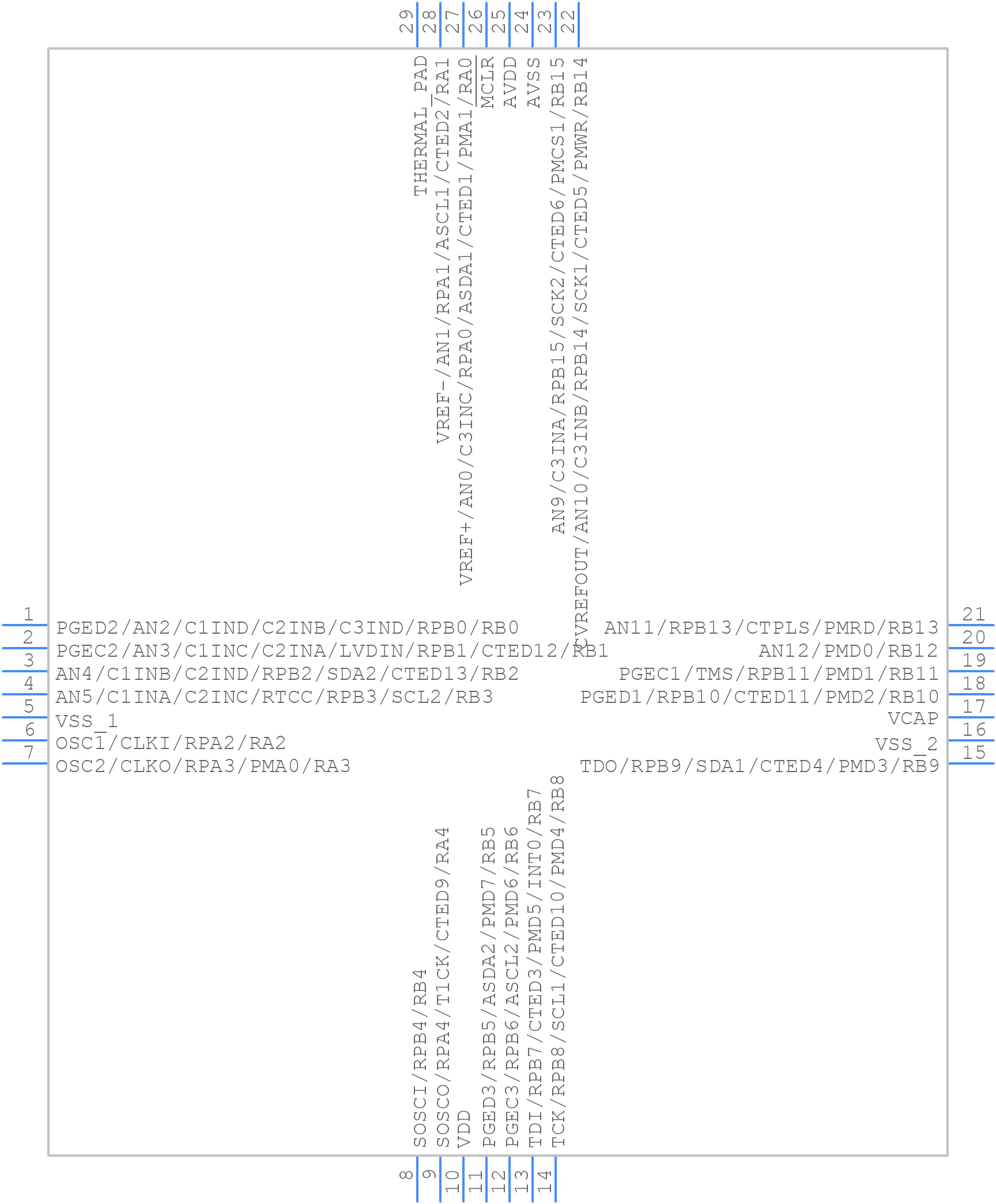

PIC32MX154F128B-I/MM - Microchip - PCB symbol
click to zoom
PCB Footprints
PIC32MX154F128B-I/MM - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28 QFN
click to zoom
3D Models
PIC32MX154F128B-I/MM - Microchip - 3D model - Quad Flat No-Lead - 28 QFN
click to zoom

PIC32MX154F128B-I/MM Details

  • Manufacturer Part Number:

    PIC32MX154F128B-I/MM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    28

  • Manufacturer Package Code:

    QFN-S-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Has ADC:

    YES

  • Additional Feature:

    12 KB BOOT FLASH MEMORY AVAILABLE

  • Bit Size:

    32

  • CPU Family:

    PIC32

  • Clock Frequency-Max:

    50 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Number of I/O Lines:

    21

  • Number of Terminals:

    28

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.24SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • ROM Programmability:

    FLASH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Speed:

    72 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

PIC32MX154F128B-I/MM Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 80 MHz, but it's recommended to use a clock frequency of 72 MHz or less to ensure stability and accuracy.
  • To configure the oscillator for optimal performance, set the POSCMD bits in the OSCCON register to select the internal fast RC oscillator (FRC), and set the FNOSC bits to select the primary oscillator mode. Also, make sure to set the PLLDIV and PLLMULT bits in the PLLFBD register to achieve the desired clock frequency.
  • The maximum amount of current that can be sourced or sunk by the GPIO pins is 25 mA per pin, but the total current sourced or sunk by all GPIO pins should not exceed 200 mA to prevent overheating and damage to the device.
  • To implement a watchdog timer, set the WDTPS bits in the RCON register to select the watchdog timer period, and set the SWDTEN bit in the RCON register to enable the watchdog timer. You can also use the WDTCON register to configure the watchdog timer mode and timeout period.
  • The minimum voltage range for the device is 2.3V, and the maximum voltage range is 3.6V. Operating the device outside of this range may cause malfunction or damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PIC32MX154F128B-I/MM Overview

Use the download button to access the PIC32MX154F128B-I/MM schematic symbol, PCB footprint, and 3D model.
