PIMP32PAX footprint, schematic symbol and 3D model by Nexperia

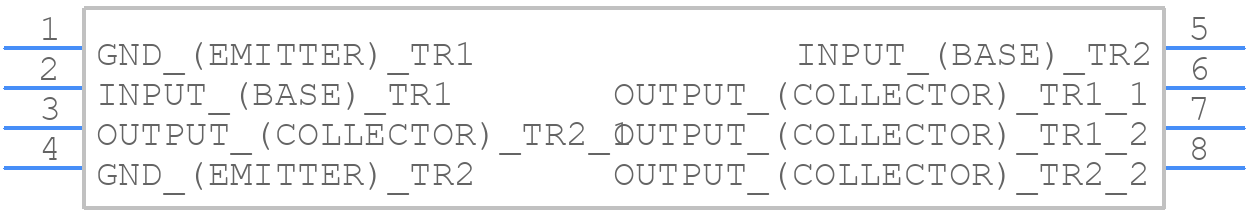

Symbol

click to zoom

PCB Footprints

PIMP32PAX - Nexperia PCB footprint - Other - Other - SOT1118_2025

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PIMP32PAX
Part Number PIMP32PAX
Manufacturer Nexperia
Pin Count 8
Part Category Transistor RET PNP
Package Category Other
Footprint Name Other - SOT1118_2025
Released Date Jan 31, 2025
Last Modified Date Jan 31, 2025 1:26 PM UTC
Pinout / Pin List Click Here (Member Only)

PIMP32PAX Details

Manufacturer Part Number:
PIMP32PAX
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Nexperia
YTEOL:
6

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PIMP32PAX Overview

Use the download button to access the PIMP32PAX schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PIMP3, or try a keyword search, such as Small Signal Bipolar Transistors
