Texas Instruments recommends following a star topology for the output signals, keeping the output traces short and away from the input traces, and using a solid ground plane to reduce noise and crosstalk.
Use a low-ESR capacitor (e.g., 0.1 μF) between VCC and GND, and a 1 μF capacitor between VCCO and GND. Place these capacitors as close to the device as possible. Additionally, ensure a stable power supply with minimal noise and ripple.
The PISO224BDWV can operate up to 250 MHz, but the actual frequency limit depends on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and perform simulations to determine the maximum frequency for your specific use case.
The output impedance of the PISO224BDWV is typically around 25 Ω. To ensure signal integrity, use a termination resistor (e.g., 50 Ω) at the receiving end, and consider using a series resistor (e.g., 22 Ω) at the output of the device to match the impedance.
The PISO224BDWV is specified to operate from -40°C to 85°C. However, it's recommended to operate the device within a narrower temperature range (e.g., 0°C to 70°C) to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PISO224BDWV Overview

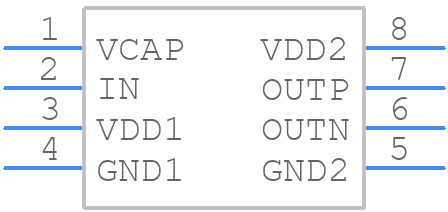

Use the download button to access the PISO224BDWV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PISO2,
or try a keyword search, such as Isolation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
