- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PJ-028A
- Part Number PJ-028A
- Manufacturer Same Sky
- Pin Count 3
- Part Category Connector
- Package Category Other

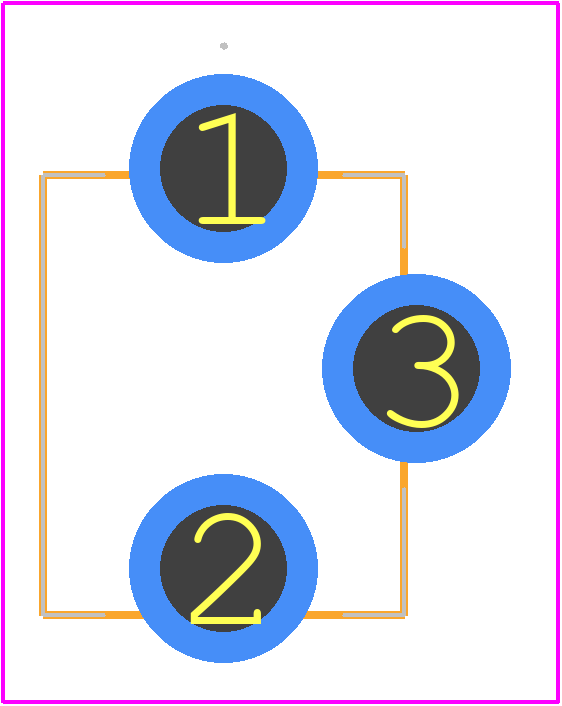

- Footprint Name Other - PJ-028A-3
- Released Date Oct 27, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PJ-028A Details
-
Manufacturer Part Number:
PJ-028A
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Same Sky
-
YTEOL:
0
-
Body Breadth:
0.354 inch
-
Body Depth:
0.535 inch
-
Body Length:
0.433 inch
-
Body/Shell Style:
JACK
PJ-028A Frequently Asked Questions (FAQs)
-
CUI Devices provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
-
To handle the high current rating, ensure that your PCB design includes wide enough traces, and use multiple vias to connect the jack's pins to the power plane. Additionally, consider using a heat sink or thermal relief patterns to dissipate heat.
-
The recommended mating cycle for PJ-028A is typically around 500-1000 cycles, depending on the application and environmental conditions. Exceeding this cycle count may lead to wear and tear on the connector, affecting its performance and reliability.
-
While PJ-028A is designed to be rugged, it's essential to evaluate its performance in high-vibration or high-shock environments. CUI Devices may provide additional guidance or testing data for such applications. Consider consulting with their technical support or performing your own testing to ensure the connector meets your specific requirements.
-
The operating temperature range for PJ-028A is typically -40°C to 85°C. However, it's essential to check the datasheet or consult with CUI Devices for specific temperature ratings, as they may vary depending on the application and environmental conditions.
Trust Checks
Expert Contribution
System Verified
Community Approved
PJ-028A Overview
Use the download button to access the PJ-028A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-02,
or try a keyword search, such as DC Power Plugs or Jacks
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
