- Part Number PJ-028BH
- Manufacturer Same Sky
- Pin Count 3
- Part Category Connector
- Package Category Other

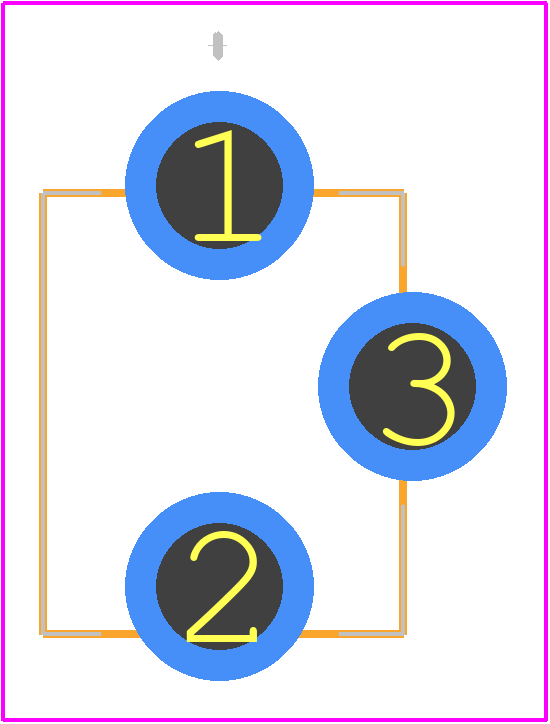

- Footprint Name Other - PJ-028BH-2
- Released Date Jul 31, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PJ-028BH Details
-
Manufacturer Part Number:
PJ-028BH
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Same Sky
-
YTEOL:
0
-
Body Breadth:
0.433 inch
-
Body Depth:
0.748 inch
-
Body Length:
0.354 inch
-
Body/Shell Style:
JACK
-
Connector Type:
DC POWER JACK
PJ-028BH Frequently Asked Questions (FAQs)
-
CUI Devices provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or through direct contact with their technical support team.
-
Follow the recommended soldering temperature and time profiles, and use a soldering iron with a fine tip to minimize thermal stress. Also, ensure the PCB is clean and free of oxidation before soldering.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult with CUI Devices' technical support for specific guidance on temperature-related considerations.
-
The PJ-028BH is designed to meet standard vibration and shock requirements, but it's crucial to evaluate the specific environmental conditions of your application. Consult with CUI Devices' technical support to determine if additional testing or customization is necessary.
-
Yes, the PJ-028BH is designed to meet standard EMI/EMC requirements, but it's essential to follow proper PCB layout and shielding techniques to minimize electromagnetic interference. Consult with CUI Devices' technical support for specific guidance on EMI/EMC considerations.
