PJ-032H-SMT-TR - Same Sky

Description: 0.65 x 2.8 mm, 2.5 A, Horizontal, Surface Mount (SMT), Shielded, Dc Power Jack Connector

Download PJ-032H-SMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

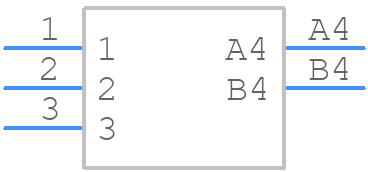

PJ-032H-SMT-TR - Same Sky - PCB symbol
click to zoom
PCB Footprints

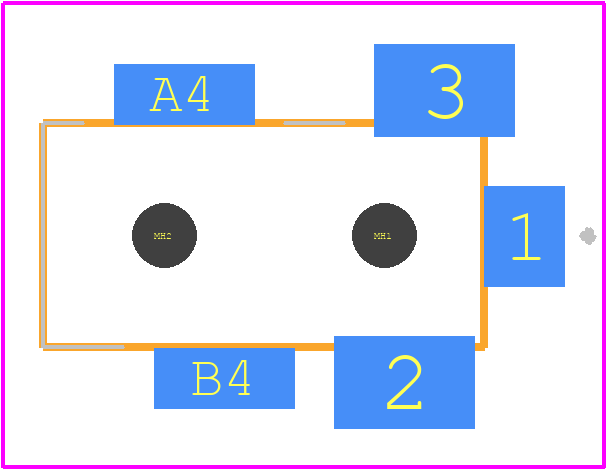

PJ-032H-SMT-TR - Same Sky PCB footprint - Other - Other - PJ-032H-SMT-TR-2
click to zoom
3D Models
PJ-032H-SMT-TR - Same Sky - 3D model - Other - PJ-032H-SMT-TR-2
click to zoom

PJ-032H-SMT-TR Details

  • Manufacturer Part Number:

    PJ-032H-SMT-TR

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    0

  • Additional Feature:

    SHIELDED

  • Body Breadth:

    0.205 inch

  • Body Depth:

    0.484 inch

  • Body Length:

    0.346 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Termination:

    Silver (Ag)

  • Insulator Material:

    POLYAMIDE6T

  • JESD-609 Code:

    e4

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    0.65 mm

  • Rated Current (Power):

    2.5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

PJ-032H-SMT-TR Frequently Asked Questions (FAQs)

  • The recommended land pattern for PJ-032H-SMT-TR can be found in the CUI Devices' application note or by contacting their technical support team. A general guideline is to follow the IPC-7351 standard for surface mount components.
  • While the PJ-032H-SMT-TR is a surface-mount component, it is not specifically designed for high-vibration applications. However, it can still be used in such environments if proper mounting and soldering techniques are employed. It's recommended to consult with CUI Devices' technical support team for specific guidance.
  • The maximum operating temperature range for PJ-032H-SMT-TR is -40°C to +125°C, as specified in the datasheet. However, it's essential to note that the component's performance may degrade at extreme temperatures, and derating may be necessary.
  • Yes, PJ-032H-SMT-TR is compatible with lead-free soldering processes. The component is RoHS-compliant and can be soldered using lead-free solder alloys with a peak reflow temperature of 260°C.
  • It's recommended to store PJ-032H-SMT-TR in a dry, cool place, away from direct sunlight and moisture. The components should be handled with anti-static precautions, such as using an ESD wrist strap or mat, to prevent damage from electrostatic discharge.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-032H-SMT-TR Overview

Use the download button to access the PJ-032H-SMT-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-03, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
