PJ-033A - Same Sky

Description: 2.0 x 6.1 mm, 2.5 A, Vertical, Through Hole, Snap-In Tabs, Dc Power Jack Connector

Download PJ-033A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-033A - Same Sky - PCB symbol
click to zoom
PCB Footprints

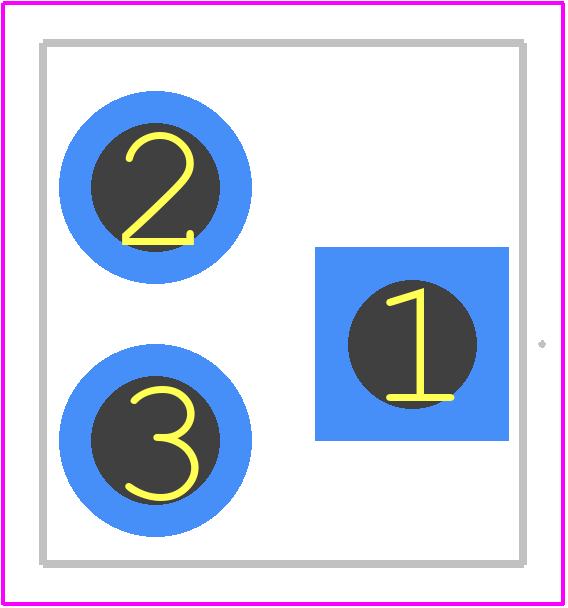

PJ-033A - Same Sky PCB footprint - Other - Other - PJ-033A-1
click to zoom
3D Models
PJ-033A - Same Sky - 3D model - Other - PJ-033A-1
click to zoom

PJ-033A Details

  • Manufacturer Part Number:

    PJ-033A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    0

  • Body Breadth:

    0.472 inch

  • Body Depth:

    0.61 inch

  • Body Length:

    0.512 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Termination:

    TIN

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    2 mm

  • Rated Current (Power):

    2.5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-033A Frequently Asked Questions (FAQs)

  • A good PCB layout for the PJ-033A involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces to reduce EMI and noise.
  • To ensure proper decoupling, place a 10uF to 22uF ceramic capacitor between the VIN and GND pins, and a 100nF to 1uF ceramic capacitor between the VOUT and GND pins, as close to the PJ-033A as possible.
  • The PJ-033A can handle up to 6.5V maximum input voltage without damage, but it's recommended to operate within the specified input voltage range of 4.5V to 5.5V for optimal performance and reliability.
  • The PJ-033A is rated for operation up to 85°C, but its performance and reliability may degrade at higher temperatures. For high-temperature applications, consider using a heat sink or a thermally-enhanced package.
  • To troubleshoot issues with the PJ-033A, check the input voltage, output load, and PCB layout for any anomalies or deviations from the recommended design. Use an oscilloscope to measure the output voltage and current, and consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-033A Overview

Use the download button to access the PJ-033A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-03, or try a keyword search, such as DC Power Plugs or Jacks
