PJ-035-SMT-TR - Same Sky

Description: 1.0 x 3.7 mm, 2.0 A, Horizontal, Surface Mount (SMT), Shielded, 3 Conductor, Dc Power Jack Connector

Download PJ-035-SMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

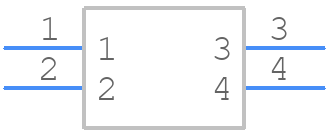

PJ-035-SMT-TR - Same Sky - PCB symbol
click to zoom
PCB Footprints

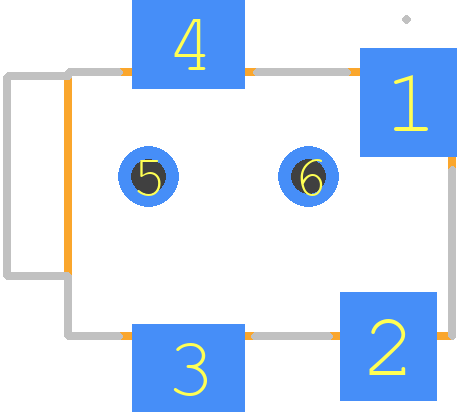

PJ-035-SMT-TR - Same Sky PCB footprint - Other - Other - PJ-035-SMT-TR
click to zoom
3D Models
PJ-035-SMT-TR - Same Sky - 3D model - Other - PJ-035-SMT-TR
click to zoom

PJ-035-SMT-TR Details

  • Manufacturer Part Number:

    PJ-035-SMT-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Additional Feature:

    SHIELDED

  • Body Breadth:

    0.201 inch

  • Body Depth:

    0.433 inch

  • Body Length:

    0.26 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYAMIDE6T

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR, 15 INCH

  • Pin Diameter:

    1 mm

  • Rated Current (Power):

    2 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

PJ-035-SMT-TR Frequently Asked Questions (FAQs)

  • The recommended land pattern for the PJ-035-SMT-TR can be found in the CUI Devices' application note or by contacting their technical support team. A general guideline is to follow the IPC-7351 standard for surface mount components.
  • During reflow soldering, ensure the PJ-035-SMT-TR is exposed to a maximum temperature of 260°C for no more than 10 seconds. It's also recommended to follow the soldering profile recommended by CUI Devices or industry standards like IPC-J-STD-020.
  • The PJ-035-SMT-TR has an operating temperature range of -40°C to 85°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this range.
  • The PJ-035-SMT-TR is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to consult with CUI Devices' technical support team to discuss specific requirements and potential custom solutions.
  • The typical lead time for PJ-035-SMT-TR can vary depending on the quantity, region, and availability. It's recommended to check with authorized distributors or CUI Devices' sales team for the most up-to-date lead time information.
