PJ-035C - Same Sky

Description: 1.0 x 3.8 mm, 2.0 A, Horizontal, Through Hole, Dc Power Jack Connector, 24 Vdc, 2.0 A, 30 mΩ, 100 MΩ, 500 Vac, -25°C to +85 °C

Download PJ-035C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-035C - Same Sky - PCB symbol
click to zoom
PCB Footprints

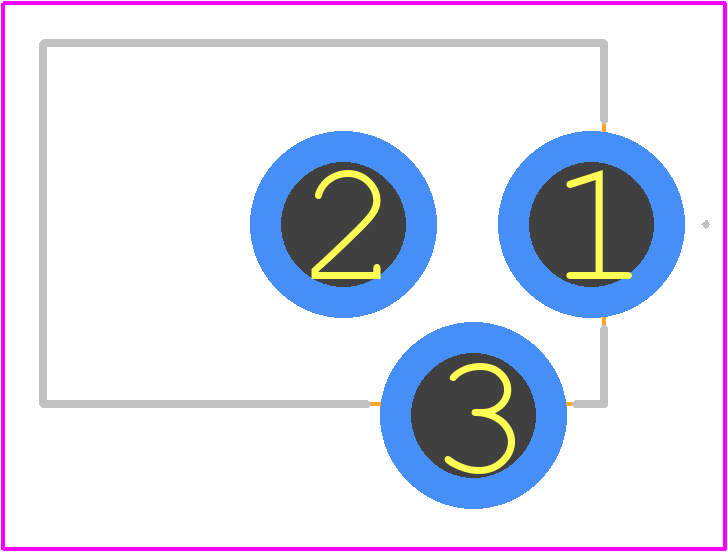

PJ-035C - Same Sky PCB footprint - Other - Other - PJ-035C-2
click to zoom
3D Models
PJ-035C - Same Sky - 3D model - Other - PJ-035C-2
click to zoom

PJ-035C Details

  • Manufacturer Part Number:

    PJ-035C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body Breadth:

    0.433 inch

  • Body Depth:

    0.571 inch

  • Body Length:

    0.354 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    1 mm

  • Rated Current (Power):

    2 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-035C Frequently Asked Questions (FAQs)

  • The recommended storage temperature for PJ-035C is -20°C to 40°C (-4°F to 104°F), as specified by Same Sky.
  • Yes, PJ-035C is suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors like moisture, UV, and extreme temperatures.
  • The typical lead time for PJ-035C varies depending on the quantity and availability. It's recommended to contact Same Sky or an authorized distributor for the most up-to-date lead time information.
  • Yes, PJ-035C is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, making it suitable for use in EU and other regions with similar regulations.
  • The maximum operating frequency for PJ-035C is 6 GHz, as specified in the datasheet. However, it's essential to consult with Same Sky or a qualified engineer to ensure the component's performance meets the specific application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-035C Overview

Use the download button to access the PJ-035C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-03, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
