Technical Content
Part Image

PJ-040-SMT-TR - Same Sky

Description: 0.65 x 2.6 mm, 1.0 A, Horizontal, Surface Mount (SMT), Dc Power Jack Connector

Download PJ-040-SMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

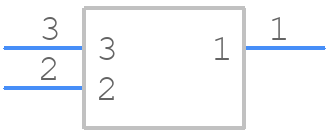

Symbol
PJ-040-SMT-TR - Same Sky - PCB symbol
click to zoom

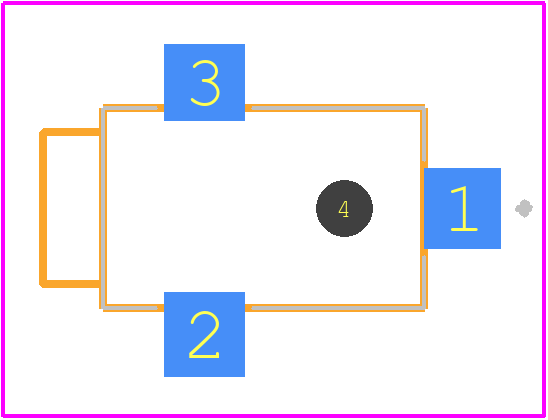

PCB Footprints
PJ-040-SMT-TR - Same Sky PCB footprint - Other - Other - PJ-040-SMT-TR-1
click to zoom
3D Models
PJ-040-SMT-TR - Same Sky - 3D model - Other - PJ-040-SMT-TR-1
click to zoom

PJ-040-SMT-TR Details

  • Manufacturer Part Number:

    PJ-040-SMT-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body Breadth:

    0.118 inch

  • Body Depth:

    0.429 inch

  • Body Length:

    0.197 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Silver (Ag)

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYAMIDE6T

  • JESD-609 Code:

    e4

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR, 15 INCH

  • Pin Diameter:

    0.65 mm

  • Rated Current (Power):

    1 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

PJ-040-SMT-TR Frequently Asked Questions (FAQs)

  • The recommended land pattern for the PJ-040-SMT-TR can be found in the CUI Devices' application note or by contacting their technical support team. A general guideline is to follow the IPC-7351 standard for surface mount components.
  • To ensure reliable soldering, follow the recommended soldering profile, use a solder with a melting point below 220°C, and maintain a clean and dry PCB surface. Avoid excessive soldering temperatures and times to prevent component damage.
  • The PJ-040-SMT-TR is rated for operation from -40°C to 125°C. However, it's essential to consider the specific application and environmental conditions to ensure the component operates within its recommended specifications.
  • The PJ-040-SMT-TR is designed for surface-mount applications and can withstand moderate vibrations. However, for high-vibration environments, it's recommended to consult with CUI Devices' technical support team to discuss specific requirements and potential customization options.
  • The typical lead time for PJ-040-SMT-TR orders varies depending on the quantity, shipping location, and availability. It's best to contact CUI Devices' sales team or authorized distributors for the most up-to-date lead time information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-040-SMT-TR Overview

Use the download button to access the PJ-040-SMT-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-04, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
