PJ-047B Frequently Asked Questions (FAQs)

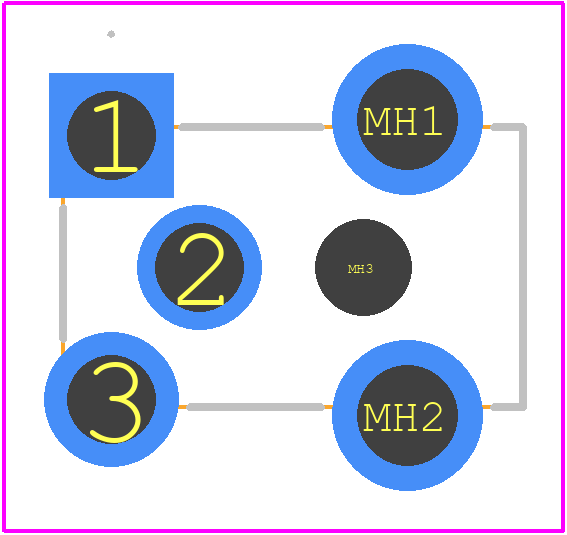

• What is the recommended PCB layout and land pattern for optimal performance?
  CUI Devices provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and mechanical stability.
• How do I ensure reliable soldering and avoid cold joints?
  To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Avoid applying excessive force or pressure, which can cause cold joints. Also, ensure the PCB is clean and free of oxidation before soldering.
• What is the maximum operating temperature range for the PJ-047B?
  While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device can tolerate short-term excursions up to 100°C during soldering or other manufacturing processes. However, prolonged exposure to temperatures above 85°C may affect the device's reliability and lifespan.
• Can I use the PJ-047B in a high-vibration or high-shock environment?
  Yes, the PJ-047B is designed to withstand moderate levels of vibration and shock. However, it's crucial to ensure proper PCB mounting and secure the device using recommended fastening methods to prevent mechanical stress and damage. Consult CUI Devices' application notes for specific guidance on mechanical design and testing.
• How do I troubleshoot common issues, such as faulty or intermittent connections?
  To troubleshoot common issues, start by inspecting the PCB for signs of damage, oxidation, or contamination. Check the solder joints for cold joints, bridging, or excessive solder. Use a multimeter to verify continuity and voltage levels. If issues persist, consult CUI Devices' technical support or application notes for further guidance.
