PJ-047BH - Same Sky

PJ-047BH Frequently Asked Questions (FAQs)

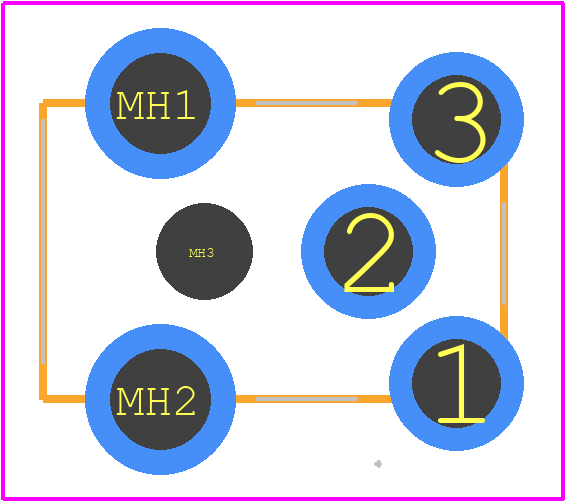

• What is the recommended PCB layout and land pattern for optimal performance?
  CUI Devices recommends following the recommended land pattern and PCB layout guidelines provided in the datasheet. Additionally, it's essential to ensure a solid ground plane, minimize trace lengths, and use a 4-layer PCB to reduce noise and EMI.
• How do I ensure reliable connectivity and prevent oxidation on the contacts?
  To prevent oxidation, apply a thin layer of solder or a conductive coating to the contacts. Ensure the mating connector is clean and free of debris. Regularly inspect and clean the connectors to maintain reliable connectivity.
• What is the maximum operating temperature range for this connector?
  The PJ-047BH is rated for operation from -40°C to 105°C. However, it's essential to consider the specific application and environmental conditions to ensure the connector meets the required temperature range.
• Can I use this connector in a high-vibration environment?
  Yes, the PJ-047BH is designed to withstand moderate vibration. However, it's crucial to ensure the connector is properly secured and the PCB is adequately anchored to prevent damage or disconnection.
• Are there any specific torque or screw-down requirements for the connector?
  Yes, CUI Devices recommends following the specified torque values and screw-down procedures outlined in the datasheet to ensure secure connections and prevent damage.
