PJ-048H - Same Sky

Description: 3.0 x 7.3 mm, 5.0 A, Horizontal, Through Hole, Kinked Pins, Dc Power Jack Connector

Download PJ-048H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ-048H - Same Sky - PCB symbol
click to zoom
PCB Footprints

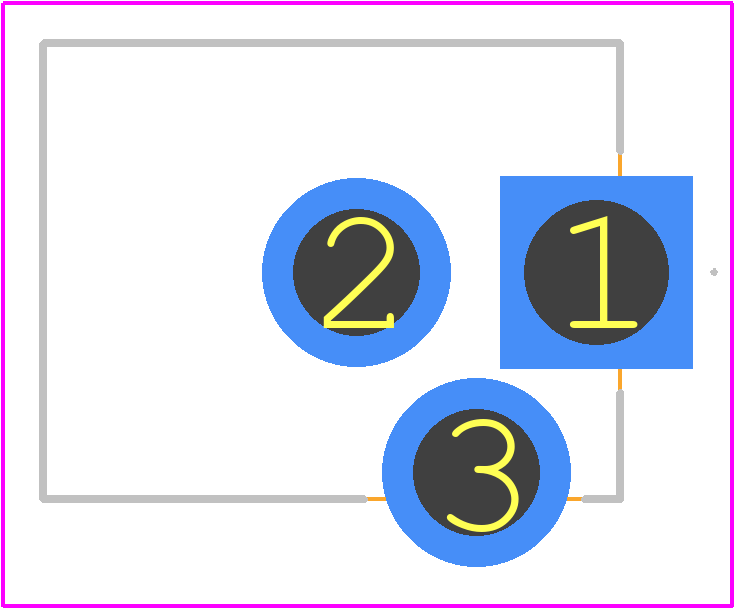

PJ-048H - Same Sky PCB footprint - Other - Other - PJ-048H-2
click to zoom
3D Models
PJ-048H - Same Sky - 3D model - Other - PJ-048H-2
click to zoom

PJ-048H Details

  • Manufacturer Part Number:

    PJ-048H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body Breadth:

    0.496 inch

  • Body Depth:

    0.571 inch

  • Body Length:

    0.449 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    3 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ-048H Frequently Asked Questions (FAQs)

  • A good PCB layout for the PJ-048H involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces to reduce EMI and noise.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good airflow, and consider using a heat sink or thermal interface material to reduce the junction temperature.
  • The maximum cable length recommended for the PJ-048H is 3 meters (10 feet) to minimize signal degradation and ensure reliable data transmission.
  • Yes, the PJ-048H can be used in redundant or backup power systems, but it's essential to ensure that the input voltage and current ratings are not exceeded, and that the device is properly synchronized with the primary power source.
  • To troubleshoot common issues with the PJ-048H, check the input voltage, output load, and ambient temperature. Verify that the device is properly installed and configured, and consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ-048H Overview

Use the download button to access the PJ-048H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-04, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
