Part Image

PJ10515FS5 - PANJIT

Description: Buck Regulators - PJ10515FS5 , Input Voltage Min. 2.5V, Input Voltage Max. 5.5V, Output Voltage Min. 0.6V, Output Voltage Max. 5V, Output Current Typ. 1.5V , Number of Outputs 1 , Synchronous Rectification Yes ,Quiescent Current Typ. 45uA ,Regulator Switching Frequency Typ. 1500kHz , Control Mode CCM , RDS(on)_HS Typ. 200mΩ , RDS(on)_LS Typ.135Duty Cycle 100 , Features: Integrated Soft-Start,Forced PWM Mode,Peak Current Mode (PCM) Control,1% Accuracy,UVLO/OVP/UVP/OTP/OCLOperating Temperature Range -40 to 1

Download PJ10515FS5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

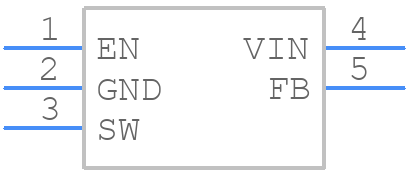

Symbol
PJ10515FS5 - PANJIT - PCB symbol
click to zoom
PCB Footprints
PJ10515FS5 - PANJIT PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SOT23-5_2024-2
click to zoom
3D Models
PJ10515FS5 - PANJIT - 3D model - SOT23 (5-Pin) - SOT23-5_2024-2
click to zoom

PJ10515FS5 Details

  • Manufacturer Part Number:

    PJ10515FS5

  • Manufacturer:

    PanJit Semiconductor

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ10515FS5 Overview

Use the download button to access the PJ10515FS5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ105, or try a keyword search, such as DC Power Plugs or Jacks
