Part Image

PJ67250QW - PANJIT

Description: Battery Gas Gauges - PJ67250QW , Cell Chemistry Li-Ion, Li-Polymer, Number of Series Cells 2-5 Cells, Communication Interface SMBusBattery Capacity Min. 100mAh, Battery Capacity Max. 65000mAh , Implementation Pack , External Capacity Indication LED ,Features: Cell Balancing,TURBO Mode 3.0,Integrated Protector,SHA-1/SHA-256, ECC Authentication ,Operating Temperature Range -40 to 85°C , Package QFN4x4-32

Download PJ67250QW Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PJ67250QW model

Email notifications will be applied after download.

Send part feedback

Symbol

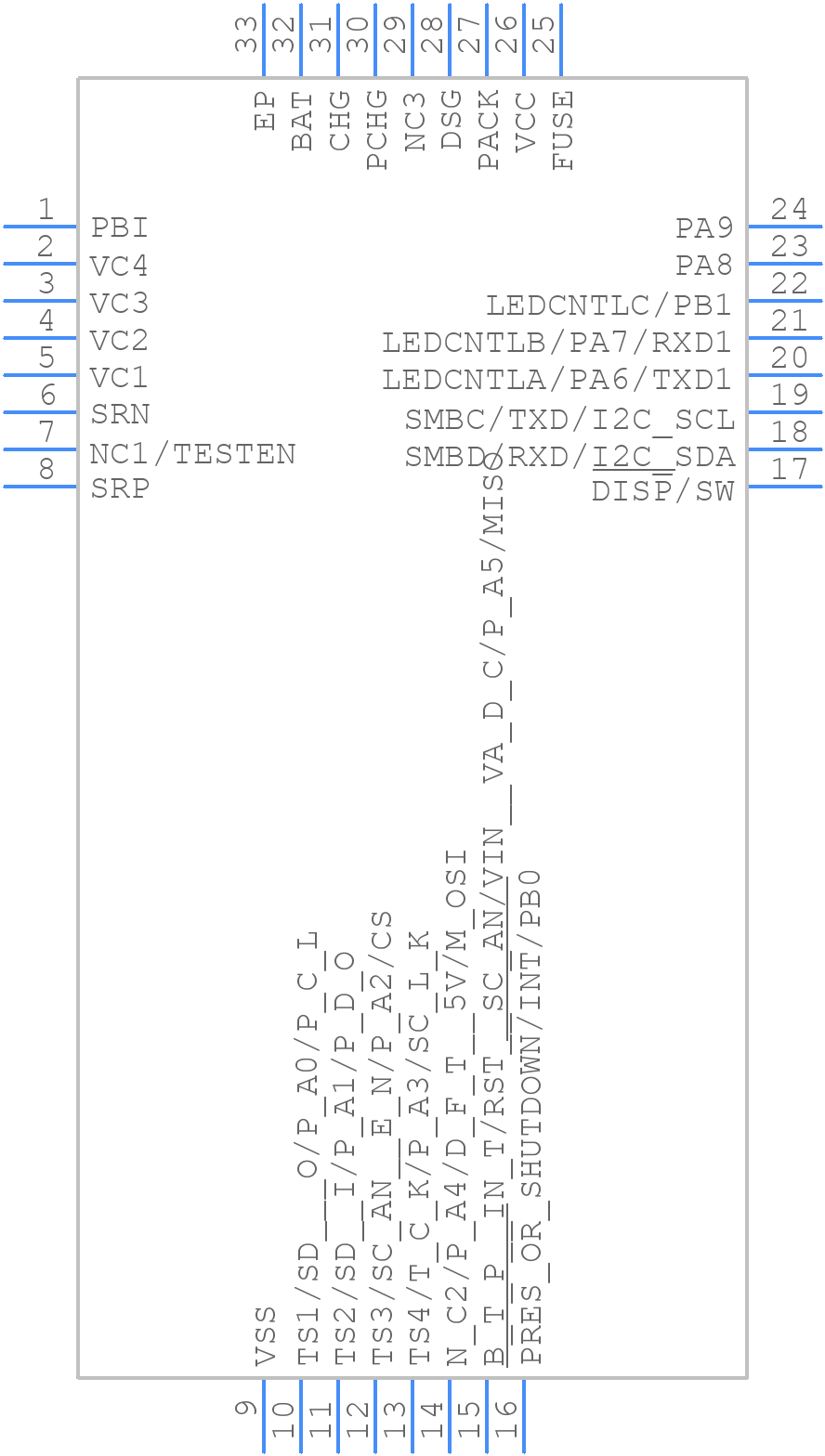

PJ67250QW - PANJIT - PCB symbol

PCB Footprints

PJ67250QW - PANJIT PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN4x4-32

3D Models

PJ67250QW - PANJIT - 3D model - Quad Flat No-Lead - QFN4x4-32

Datasheet Download Datasheet
Stock & Prices Price & Stock for PJ67250QW
Part Number PJ67250QW
Manufacturer PANJIT
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN4x4-32
Released Date Feb 23, 2024
Last Modified Date Mar 21, 2024 1:18 AM UTC
Pinout / Pin List Click Here (Member Only)

PJ67250QW Details

Manufacturer Part Number:
PJ67250QW
Manufacturer:
PanJit Semiconductor

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PJ67250QW Overview

Use the download button to access the PJ67250QW schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PJ672, or try a keyword search, such as Quartz Crystals
