PJRAN1X1U02AUX footprint, schematic symbol and 3D model by Switchcraft

Symbol

click to zoom

PCB Footprints

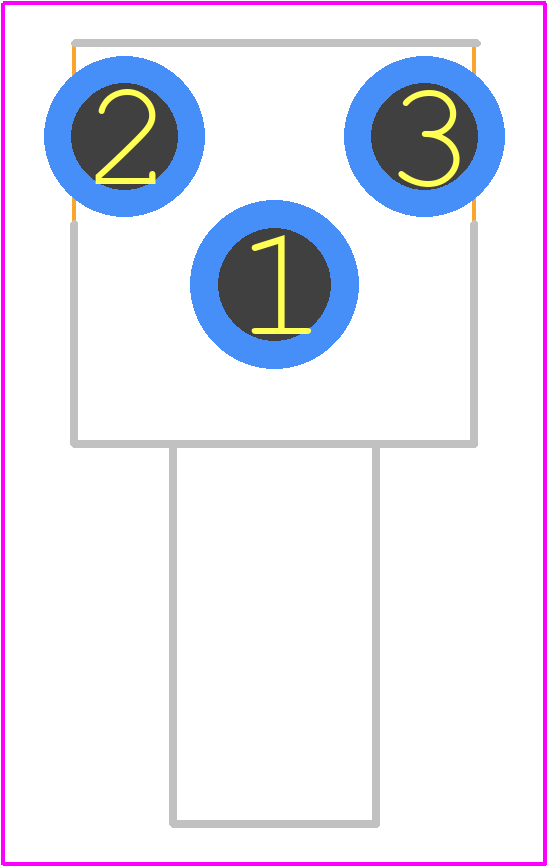

PJRAN1X1U02AUX - Switchcraft PCB footprint - Other - Other - PJRAN1X1U02AUX-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PJRAN1X1U02AUX
Part Number PJRAN1X1U02AUX
Manufacturer Switchcraft
Pin Count 3
Part Category Connector
Package Category Other
Footprint Name Other - PJRAN1X1U02AUX-1
Released Date Apr 29, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PJRAN1X1U02AUX Details

Manufacturer Part Number:
PJRAN1X1U02AUX
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Switchcraft Conxall
YTEOL:
7
Additional Feature:
STANDARD: UL 94HB
Body/Shell Style:
JACK
Configuration:
1X1 HORIZONTAL
Connector Type:
RCA
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
GOLD
DIN Conformance:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mounting Type:
BOARD
Number of Poles:
1
Number of Ports:
1
Option:
GENERAL PURPOSE
Termination Type:
SOLDER

PJRAN1X1U02AUX Frequently Asked Questions (FAQs)

The operating temperature range of PJRAN1X1U02AUX is -40°C to 85°C.
Yes, PJRAN1X1U02AUX is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The maximum current rating of PJRAN1X1U02AUX is 1A per contact.
Yes, PJRAN1X1U02AUX is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, industrial, and transportation.
The mating cycle life of PJRAN1X1U02AUX is 500 cycles minimum.

Trust Checks

Expert Contribution

System Verified

Community Approved

PJRAN1X1U02AUX Overview

Use the download button to access the PJRAN1X1U02AUX schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PJRAN, or try a keyword search, such as Audio/RCA Connectors
