The recommended PCB layout involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad layout.
Optimize the output filter design by selecting the right inductor and capacitor values, ensuring a high Q factor, and using a shielded inductor to reduce EMI. Also, consider using a pi-filter or a common-mode choke to further reduce noise.
Operating the PKU4104CPI at high temperatures can reduce its lifespan and affect its performance. To mitigate this, ensure good airflow, use a heat sink, and consider derating the output current. Also, monitor the junction temperature and implement thermal shutdown or warning mechanisms if necessary.
Ensure EMC and reduce EMI by following proper PCB layout and grounding techniques, using shielded components, and implementing EMI filters. Also, consider using a metal enclosure and ensuring that the design meets relevant EMC standards and regulations.
The trade-offs involve balancing efficiency, power density, and cost. Higher efficiency often requires more complex designs and higher-cost components, while higher power density may compromise efficiency and reliability. Carefully evaluate the design requirements and optimize the trade-offs accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PKU4104CPI Overview

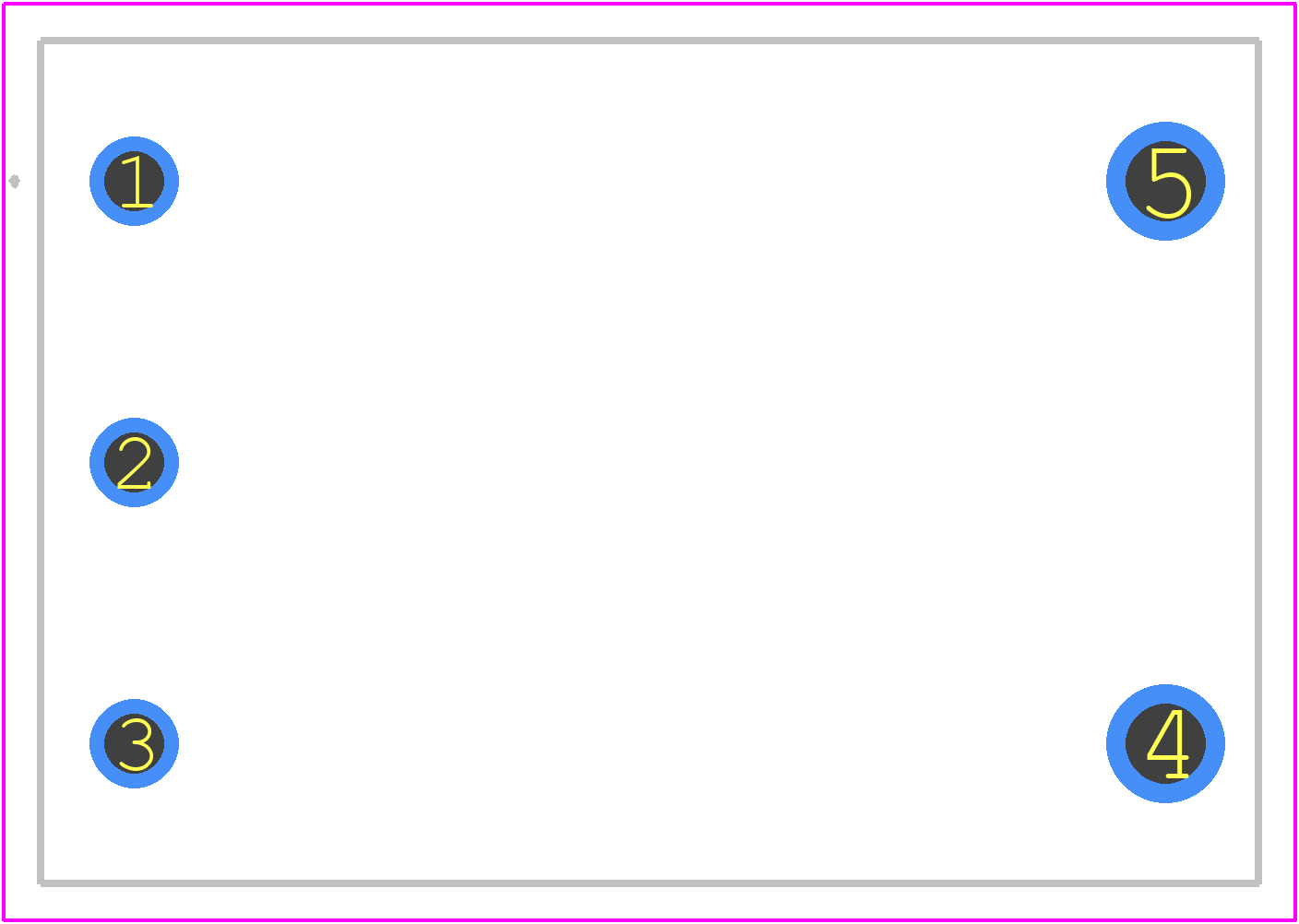

Use the download button to access the PKU4104CPI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PKU41,
or try a keyword search, such as Power Supply Modules
