PL160-100L - COILCRAFT

Description: Audio Transformers / Signal Transformers PL160 160W 0.0147Ohm Planar Trnsfmr

Download PL160-100L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

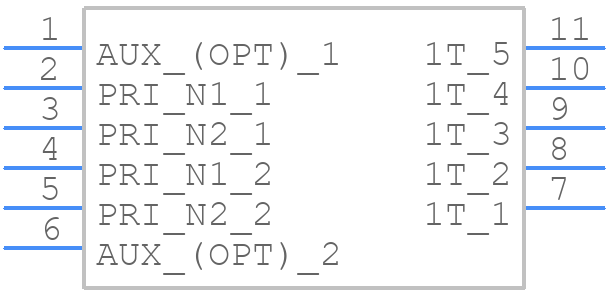

PL160-100L - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

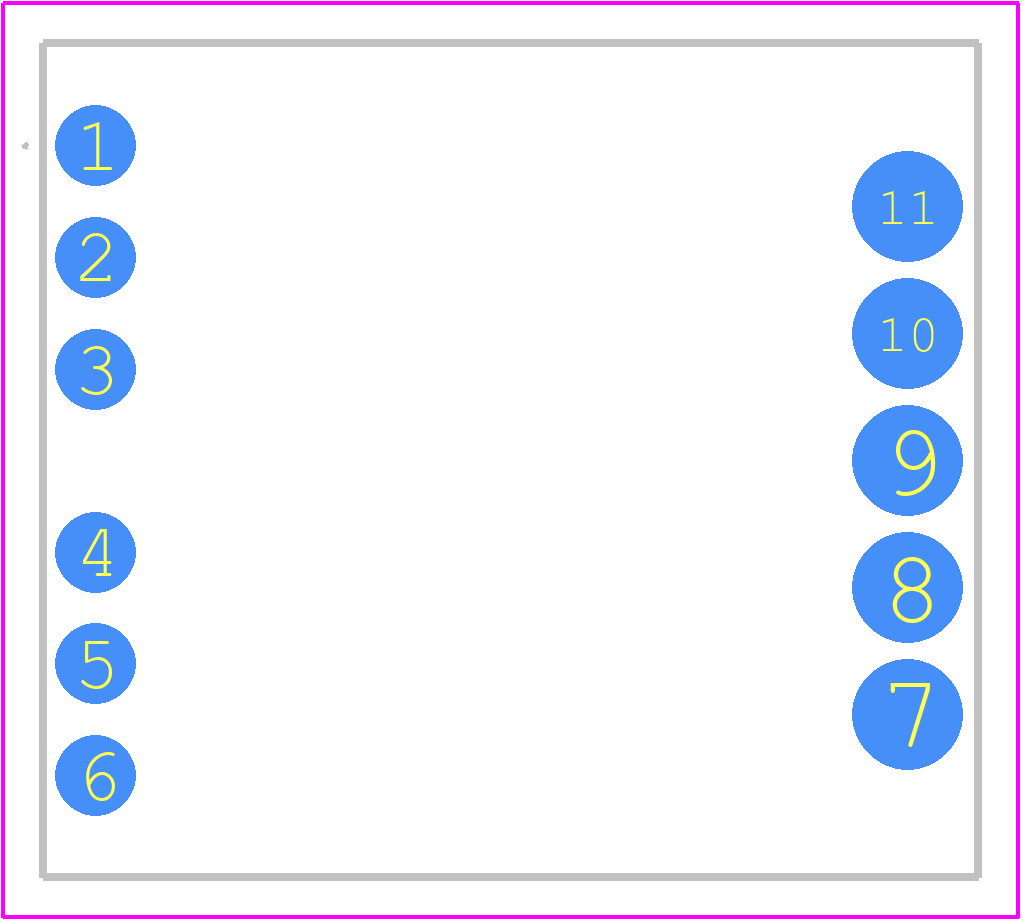

PL160-100L - COILCRAFT PCB footprint - Other - Other - PL160-100L-3
click to zoom
3D Models
PL160-100L - COILCRAFT - 3D model - Other - PL160-100L-3
click to zoom

PL160-100L Details

  • Manufacturer Part Number:

    PL160-100L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6

  • Approvals:

    AEC-Q200

  • Height:

    8.94 mm

  • Input Voltage-Nom:

    48 V

  • JESD-609 Code:

    e3

  • Length:

    23.37 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    700 kHz

  • Operating Frequency-Min:

    200 kHz

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TRAY

  • Power Rating:

    160 W

  • Primary Inductance:

    246 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    20.83 mm

PL160-100L Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the PL160-100L is a pad layout with a diameter of 0.140 inches (3.56 mm) and a spacing of 0.040 inches (1.02 mm) between pads.
  • To minimize the impact of PCB layout and proximity to other components, keep the PL160-100L at least 0.1 inches (2.54 mm) away from other components, and use a solid ground plane under the inductor to reduce electromagnetic interference (EMI).
  • The maximum operating temperature range for the PL160-100L is -40°C to +125°C, with a derating of 1.5% per °C above 80°C.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Avoid applying excessive heat or pressure, which can damage the inductor.
  • The ESR of the PL160-100L is approximately 0.15 ohms at 100 kHz, and 0.25 ohms at 1 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PL160-100L Overview

Use the download button to access the PL160-100L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PL160, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
