PL160-102L - COILCRAFT

Description: Audio Transformers / Signal Transformers PL160 160W 0.0185Ohm Planar Trnsfmr

Download PL160-102L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

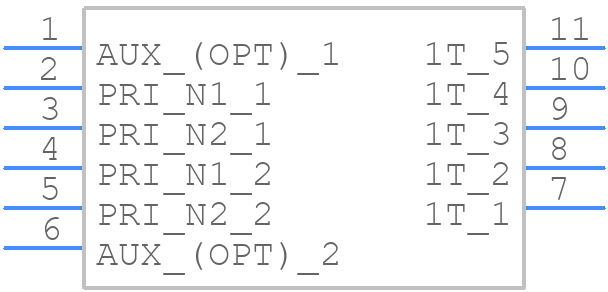

PL160-102L - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

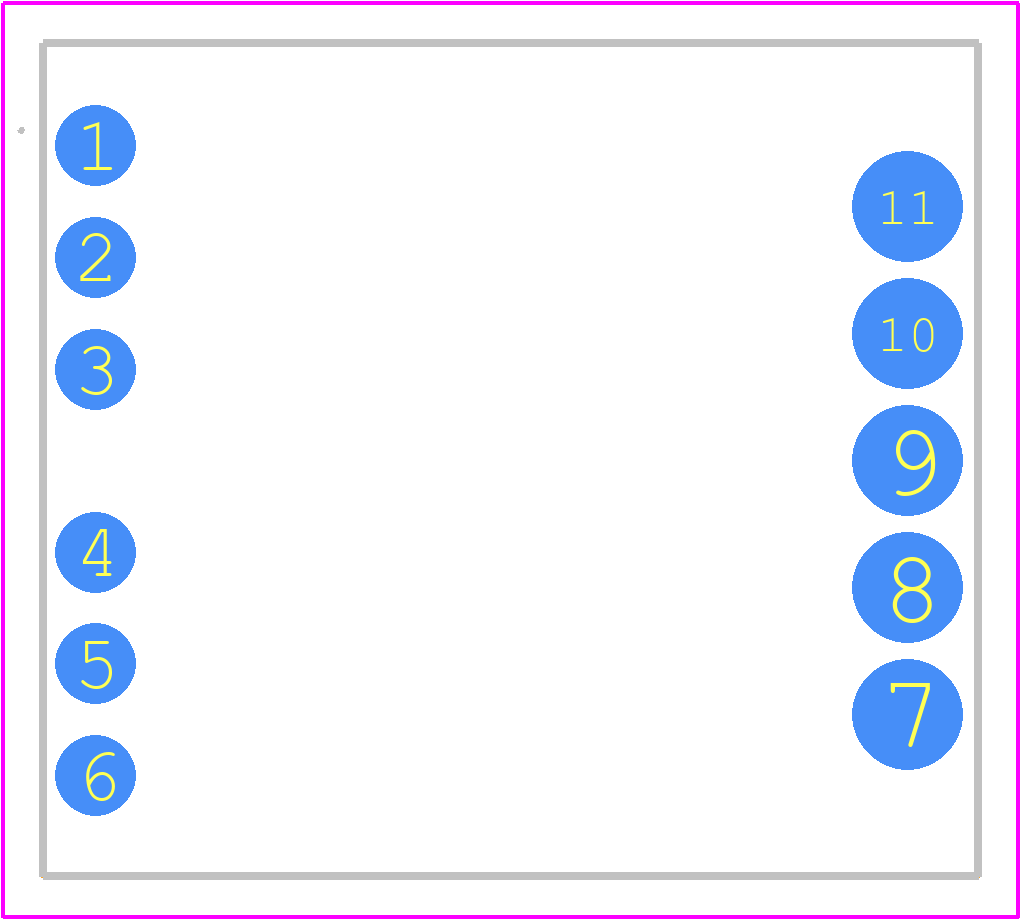

PL160-102L - COILCRAFT PCB footprint - Other - Other - PL160-102L-2
click to zoom
3D Models
PL160-102L - COILCRAFT - 3D model - Other - PL160-102L-2
click to zoom

PL160-102L Details

  • Manufacturer Part Number:

    PL160-102L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6

  • Approvals:

    AEC-Q200

  • Height:

    9.14 mm

  • Input Voltage-Nom:

    48 V

  • JESD-609 Code:

    e3

  • Length:

    23.37 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    700 kHz

  • Operating Frequency-Min:

    200 kHz

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TRAY

  • Power Rating:

    160 W

  • Primary Inductance:

    378 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    20.83 mm

PL160-102L Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended land pattern for the PL160-102L in their datasheet, which includes a suggested pad layout and dimensions for optimal performance and reliability.
  • The PL160-102L is rated for operation up to 125°C, but derating may be necessary for temperatures above 85°C. Consult Coilcraft's temperature derating chart for specific guidance.
  • To minimize the risk of mechanical stress affecting the PL160-102L's performance, avoid subjecting the component to excessive bending, flexing, or vibration. Use a sturdy PCB and follow proper mounting and handling procedures.
  • The ESR of the PL160-102L is not explicitly stated in the datasheet, but it can be estimated based on the component's DC resistance and inductance values. Contact Coilcraft's technical support for guidance on calculating ESR.
  • The PL160-102L is designed for use in high-frequency applications up to 1 GHz. However, its performance may degrade at higher frequencies due to skin effect and other parasitic losses. Consult Coilcraft's high-frequency modeling data for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PL160-102L Overview

Use the download button to access the PL160-102L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PL160, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
