PL2.5-24-130B - Tamura

Description: Laminated Core 2.5VA Power Transformer 115V, 230V Primary Parallel 12V, Series 24V Secondary Parallel 200mA, Series 100mA Through Hole

Download PL2.5-24-130B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

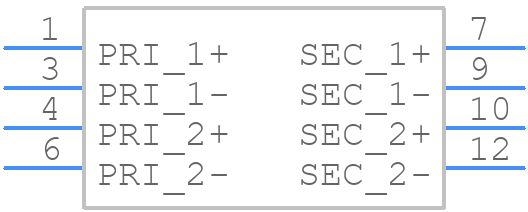

PL2.5-24-130B - Tamura - PCB symbol
click to zoom
PCB Footprints

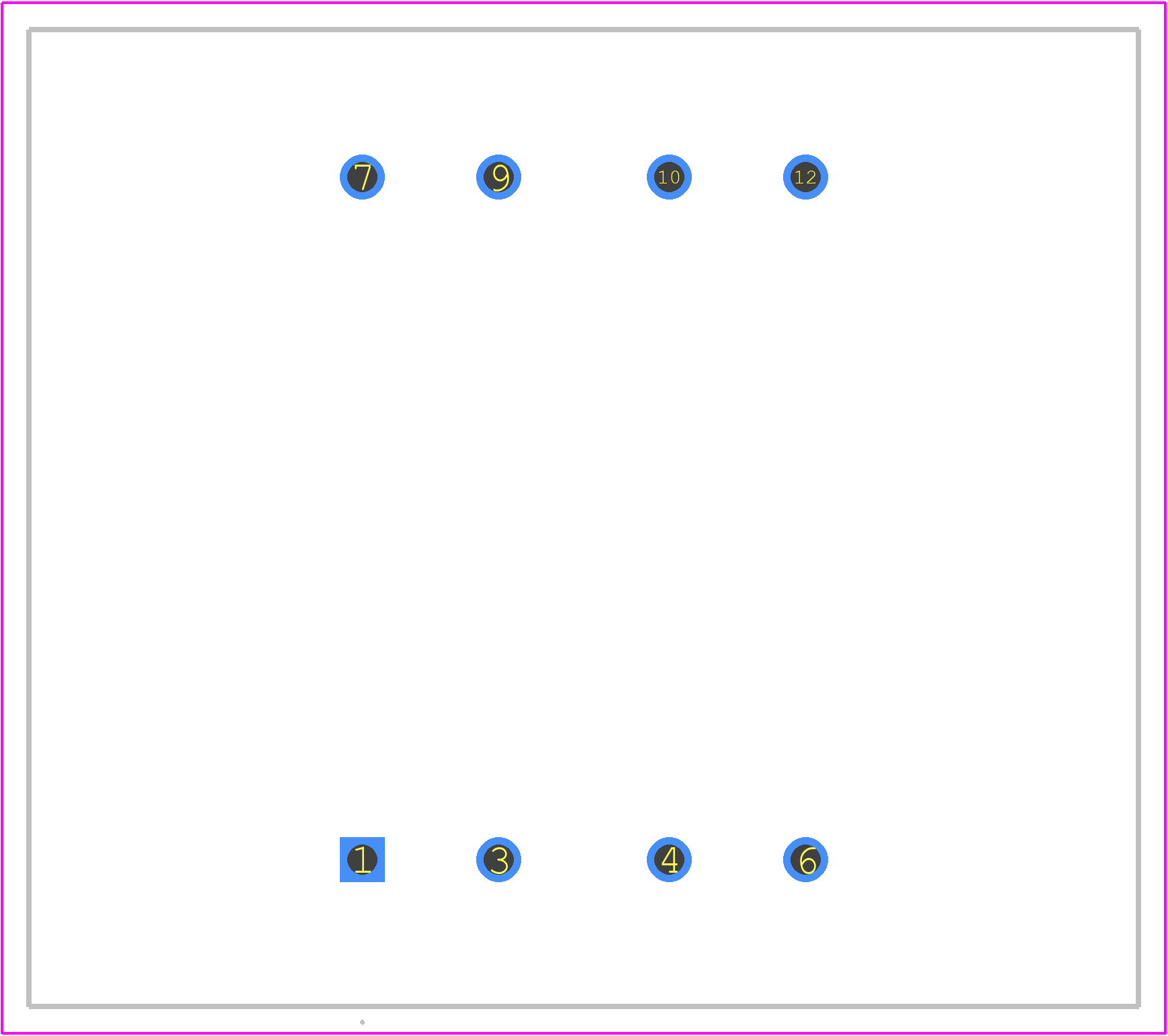

PL2.5-24-130B - Tamura PCB footprint - Other - Other - 41.28 x 36.37 x 28.6mm
click to zoom
3D Models
PL2.5-24-130B - Tamura - 3D model - Other - 41.28 x 36.37 x 28.6mm
click to zoom

PL2.5-24-130B Details

  • Manufacturer Part Number:

    PL2.5-24-130B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Tamura Corporation of America

  • YTEOL:

    5.98

  • Approvals:

    CSA, TUV, UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    28.6 mm

  • Input Voltage-Nom:

    230 V

  • Length:

    41.28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.2 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    2.5 VA

  • Width:

    36.37 mm

PL2.5-24-130B Frequently Asked Questions (FAQs)

  • The operating temperature range of the PL2.5-24-130B is -40°C to 125°C, as specified by Tamura Corporation of America.
  • Yes, the PL2.5-24-130B is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • Tamura Corporation of America provides a recommended PCB layout and land pattern for the PL2.5-24-130B in their application notes or datasheet. It's essential to follow these guidelines to ensure proper mounting and thermal performance.
  • While the PL2.5-24-130B is a high-quality component, it's essential to consult with Tamura Corporation of America or a qualified representative to determine its suitability for high-reliability or aerospace applications, as additional testing and certification may be required.
  • The typical lead time and minimum order quantity for the PL2.5-24-130B vary depending on the region, distributor, and availability. It's best to contact a authorized distributor or Tamura Corporation of America directly for the most up-to-date information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PL2.5-24-130B Overview

Use the download button to access the PL2.5-24-130B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PL2.5, or try a keyword search, such as Power/Mains Transformers
