PL300-100L - COILCRAFT

Description: Audio Transformers / Signal Transformers PL160 300W 0.0072Ohm Planar Trnsfmr

Download PL300-100L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

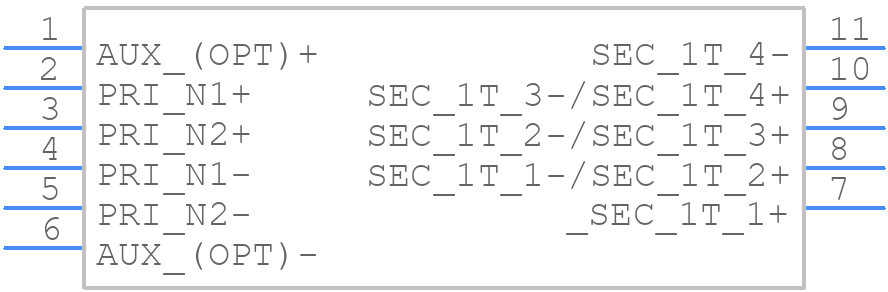

Symbol
PL300-100L - COILCRAFT - PCB symbol
click to zoom

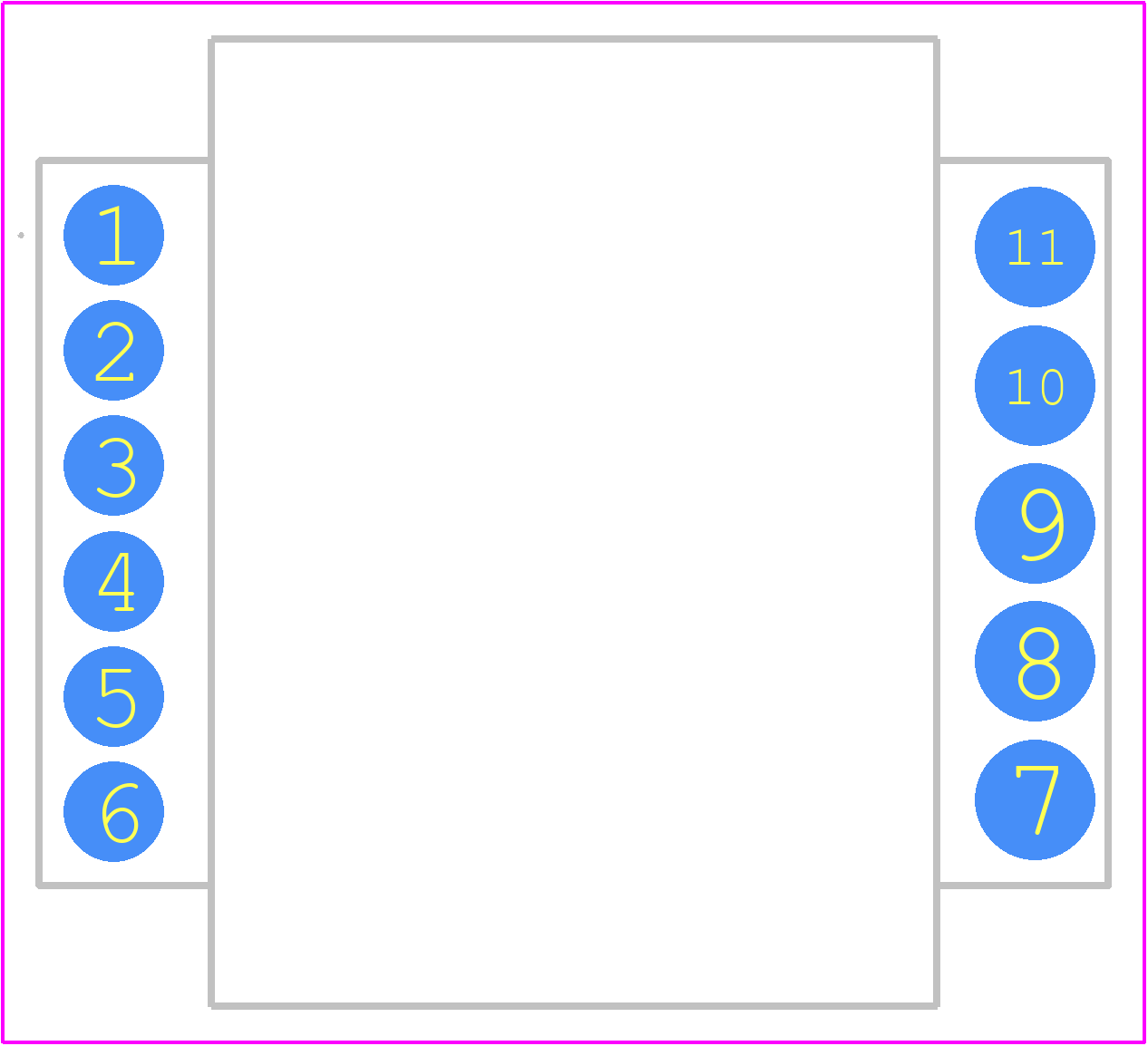

PCB Footprints
PL300-100L - COILCRAFT PCB footprint - Other - Other - PL300-100L-5
click to zoom
3D Models
PL300-100L - COILCRAFT - 3D model - Other - PL300-100L-5
click to zoom

PL300-100L Details

  • Manufacturer Part Number:

    PL300-100L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6

  • Approvals:

    AEC-Q200

  • Height:

    10.4 mm

  • Input Voltage-Nom:

    48 V

  • JESD-609 Code:

    e3

  • Length:

    29.46 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    700 kHz

  • Operating Frequency-Min:

    200 kHz

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TRAY

  • Power Rating:

    300 W

  • Primary Inductance:

    287 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    26.67 mm

PL300-100L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the PL300-100L is a rectangular pad with a minimum size of 0.25 inches (6.4 mm) x 0.15 inches (3.8 mm) with a non-solder mask defined (NSMD) pad shape.
  • The PL300-100L is rated for operation up to 125°C, but derating is required for temperatures above 85°C. Consult the datasheet for specific derating guidelines.
  • Handle the PL300-100L by the body of the inductor, avoiding touching the leads or core. Use a wrist strap or anti-static mat to prevent electrostatic discharge (ESD) damage.
  • The ESR of the PL300-100L is not explicitly stated in the datasheet, but it can be estimated to be around 0.1-0.2 ohms based on the inductor's DC resistance and frequency response.
  • The PL300-100L is suitable for high-frequency applications up to 1 MHz, but the inductor's impedance and losses should be considered in the design. Consult the datasheet for frequency response curves.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PL300-100L Overview

Use the download button to access the PL300-100L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PL300, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
